SKU: KSO25-PP-INA

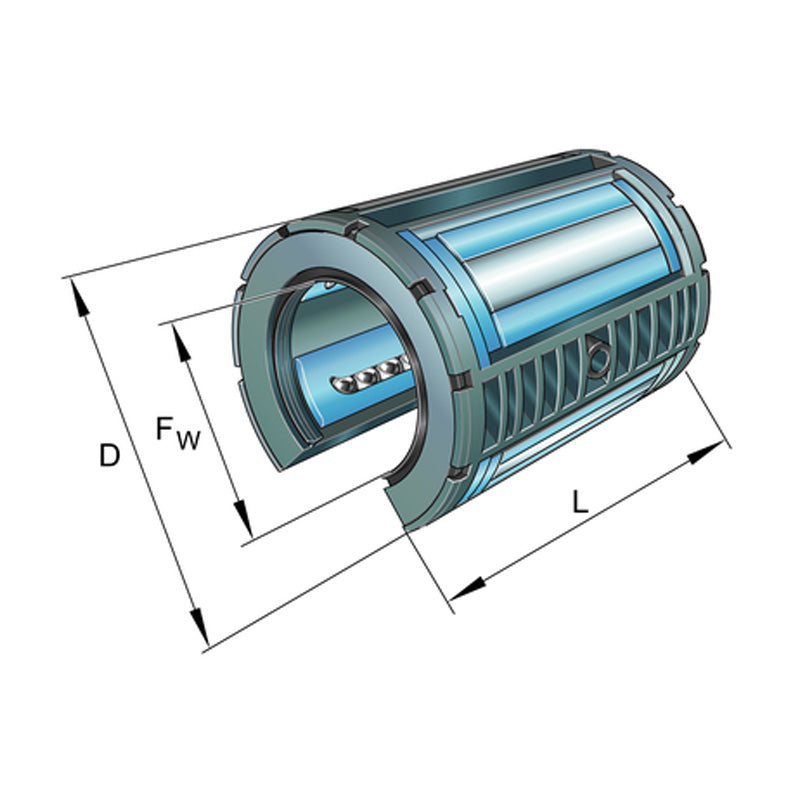

INA KSO25PP Open Self Aligning Linear Ball Bushing with Contact Seals 25x40x58mm
INA KSO25PP Open Self Aligning Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
€102,95
ex VAT
Regular price
Sale price
€102,95
ex VAT
In stock
Price Break
3+
€77,57
5+
€73,21
10+
€72,34
15+
€71,47
20+
€70,60
30+
€69,73
40+
€65,37
50+
€64,50
60+
€63,63
75+
€62,76
100+
€61,01
Quantity
Couldn't load pickup availability
Description
Description
|
INA KSO..-PP Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KSO linear ball bearings can compensate misalignment of up to ±40 deg. This bearing has a segment cutout and is intended for supported shafts. The bearings are sealed on both sides with lip seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Compensates misalignments, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Number of rows of ball | 6 |
| A10 | 1.5mm |
| B2 | 12.5mm |
| N1 | 3.5mm |
| N4 | 3mm |
| α | 60° |
| Mass | 0.075 kg |
| Basic dynamic load rating C max | 3950 N |
| Basic static load rating C0 max | 4300 N |
