SKU: KR47PP-EU

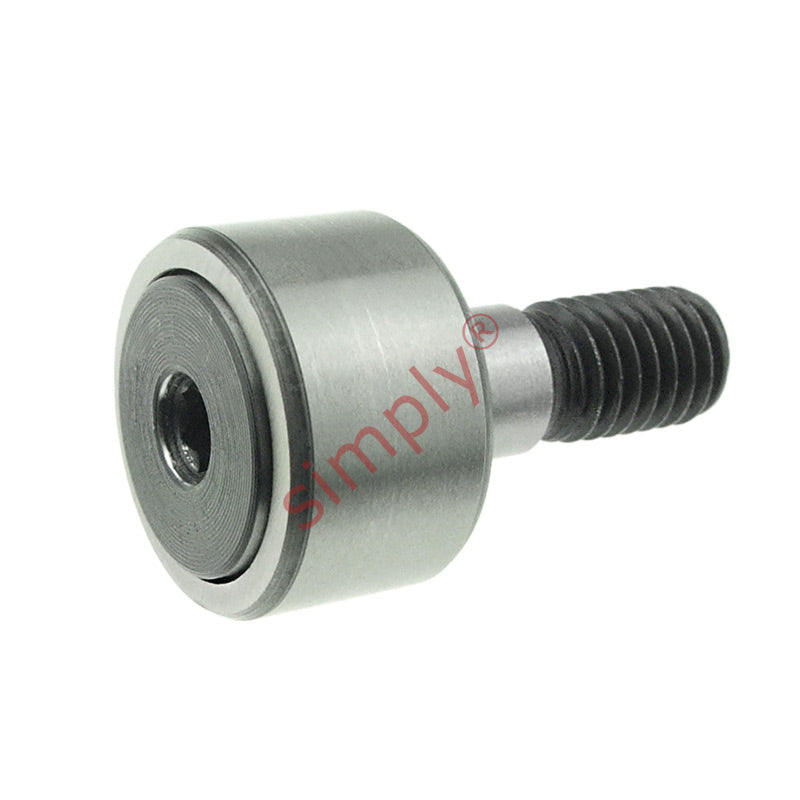

Budget KR47PP Contact Sealed Crowned Cam Follower 47x24x20 M20x1.5 Thread
Budget KR47PP Contact Sealed Crowned Cam Follower 47x24x20 M20x1.5 Thread
Out of stock
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 47mm
- Width:
- 24mm
- Pitch:
- M20x1.5
Technical
Technical
| D | 47mm |
|---|---|
| C | 24mm |
| d (Stud Diameter) | 20mm |
| B | 66mm |
| B1 | 40.5mm |
| B2 | 9mm |
| C1 | 0.8mm |
| d1 | 37mm |
| G | M20x1.5 |
| G1 | 21mm |
| M | 8mm |
| M1 | 4mm |
| r min | 1mm |
| Dynamic load | 14700 N |
| Static load | 24500 N |
| Fatigue load limit Pu | 2900 N |
| Radial dynamic load | 23600 N |
| Radial static load | 33500 N |
| Speed rating | 2400 rpm |
| Weight | 390 g |
