SKU: KR22-EU

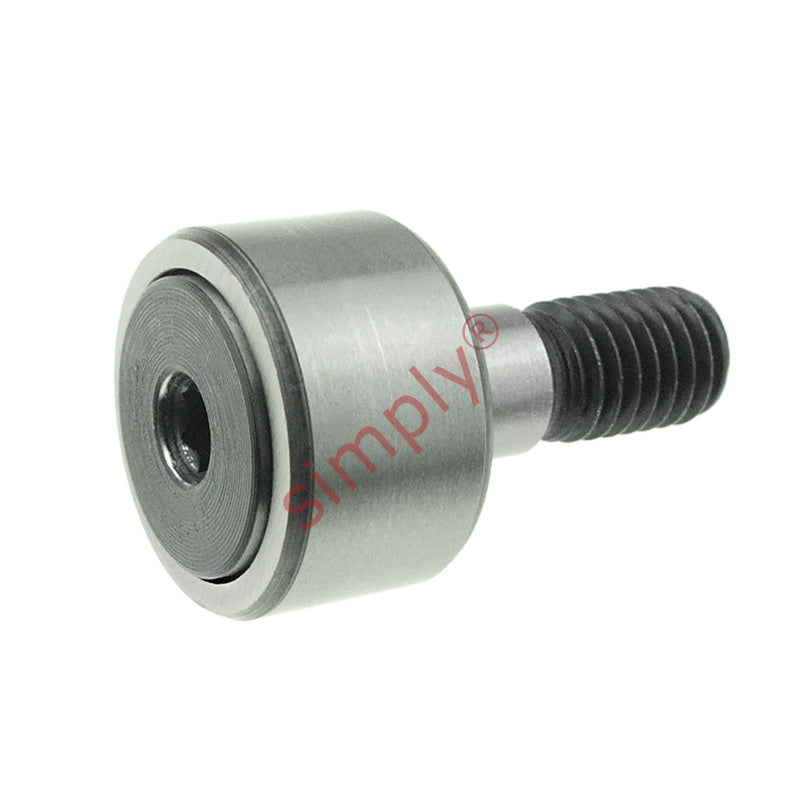

Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
10+
€7,80
19+
€7,36
29+
€7,27
39+
€7,18
49+
€7,10
74+
€7,01
99+
€6,57
199+
€6,48
249+
€6,39
499+
€6,31
999+
€6,13
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 22mm
- Width:
- 12mm
- Pitch:
- M10x1

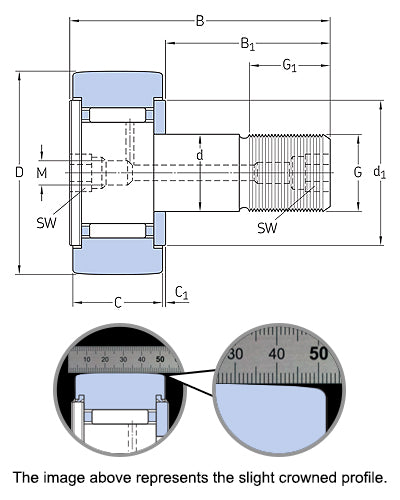

Technical
Technical
| D | 22mm |
|---|---|
| C | 12mm |
| d (Stud Diameter) | 10mm |
| B | 36mm |
| B1 | 23mm |
| C1 | 0.6mm |
| d1 | 17mm |
| G | M10x1 |
| G1 | 12mm |
| M | 4mm |
| r min | 0.3mm |
| Dynamic load | 4400 N |
| Static load | 5000 N |
| Fatigue load limit Pu | 560 N |
| Radial dynamic load | 4250 N |
| Radial static load | 6000 N |
| Speed rating | 8000 rpm |
| Weight | 44 g |
