SKF KMT36 Precision Lock Nut with Locking Pins M180x3mm

Name: SKF KMT36 Precision Lock Nut with Locking Pins M180x3mm
Brand: SKF
SKU: KMT36-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

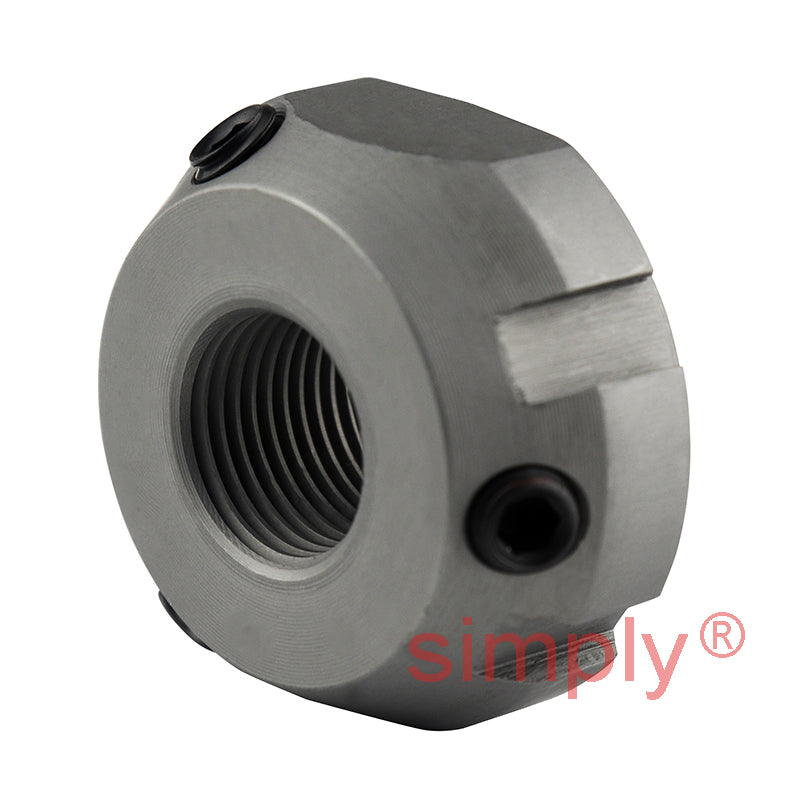

SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M180x3

Technical

d1	202mm
d2	215mm
d3	204mm
d4	182mm
B	32mm
b	16mm
h	7mm
Axial load capacity	1220 kN
Loosening torque	1900 Nm
Weight	2.3 kg
G	M180x3
Spanner	TMFN30-40
Grub screw	M10
Screw torque	35 Nm
