SKU: KM7.NYLOC.EU

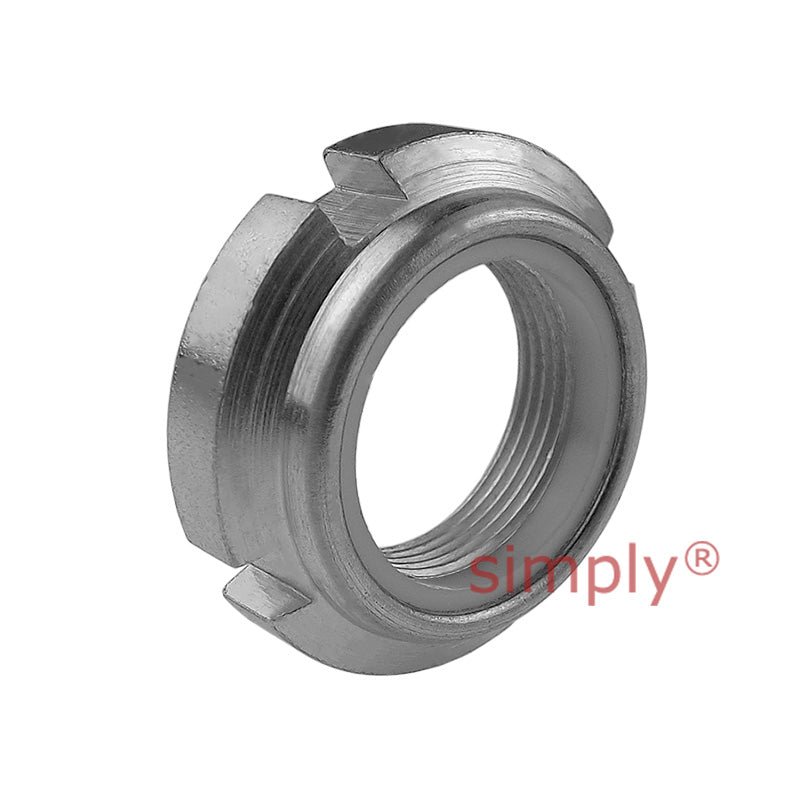

KM7 Nyloc Lock Nut (Lock Washer Type) M35x1.5mm
KM7 Nyloc Lock Nut (Lock Washer Type) M35x1.5mm
Regular price
€11,95
ex VAT
Regular price
Sale price
€11,95
ex VAT
In stock
Price Break
10+
€8,69
19+
€8,20
29+
€8,11
39+
€8,01
49+
€7,91
74+
€7,81
99+
€7,33
199+
€7,23
249+
€7,13
499+
€7,03
999+
€6,84
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M35x1.5
Technical
Technical
| G | M35x1.5mm |
|---|---|
| d1 | 44mm |
| d3 | 52mm |
| B | 11.1mm |
| b | 5mm |
| h | 2mm |
| Static axial load capacity | 50 kN |
| Weight | 0.059 kg |
| Lock nut | KM7 |
| Appropriate locking washer | MB7 |
| Appropriate spanner | HN7 |
