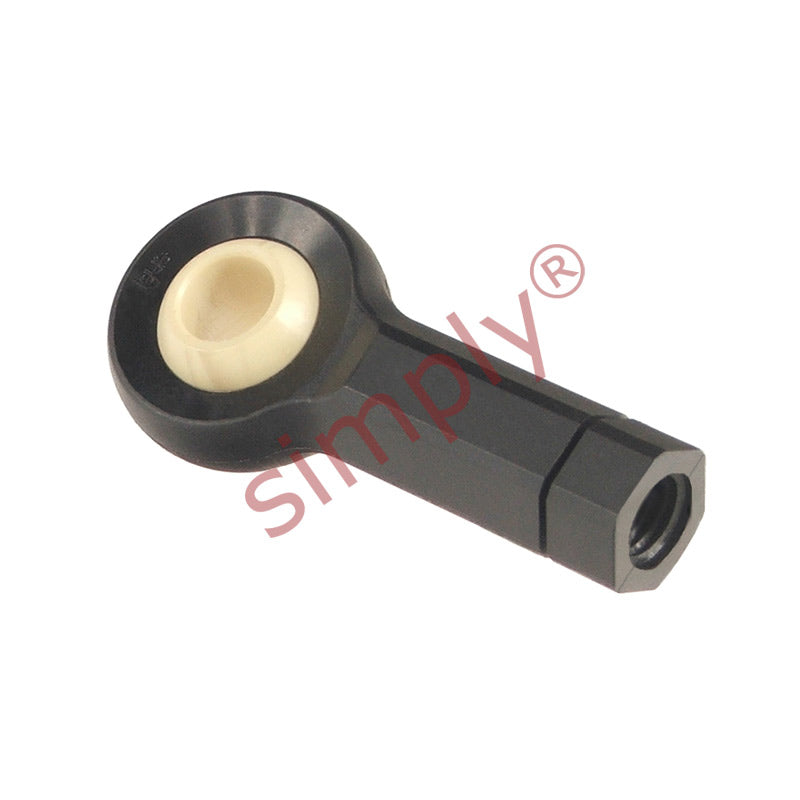

• igubal KBRM10CLR Right Hand Female Plastic Rod End with Hexagon Body 10mm Bore M10 Thread
1 1

SKU: KBRM-10.CL.R

igubal KBRM10CLR Right Hand Female Plastic Rod End with Hexagon Body 10mm Bore M10 Thread

igubal KBRM10CLR Right Hand Female Plastic Rod End with Hexagon Body 10mm Bore M10 Thread
€16,95 ex VAT
€16,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,30
9+ €11,61
19+ €11,47
29+ €11,34
39+ €11,20
49+ €11,06
59+ €10,37
69+ €10,23
79+ €10,09
89+ €9,95
99+ €9,68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_CL_R_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M10
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 30mm
d3 M10
d4 SW15
B 14mm
C1 10.5mm
h 58mm
h1 52.2mm
h2 43mm
L2 30mm
L1 67.2mm
m 8.4mm
Max pivot angle 35°
Max static tensile strength (short term) 3100 N
Max static tensile strength (long term) 1550 N
Max radial load (short term) 800 N
Max radial load (long term) 400 N
Min thread depth 13mm
Max torque strength outside thread 3 Nm
Max torque through ball (standard) 20 Nm
Max torque through ball (MH) 50 Nm
Weight 14.1 g
