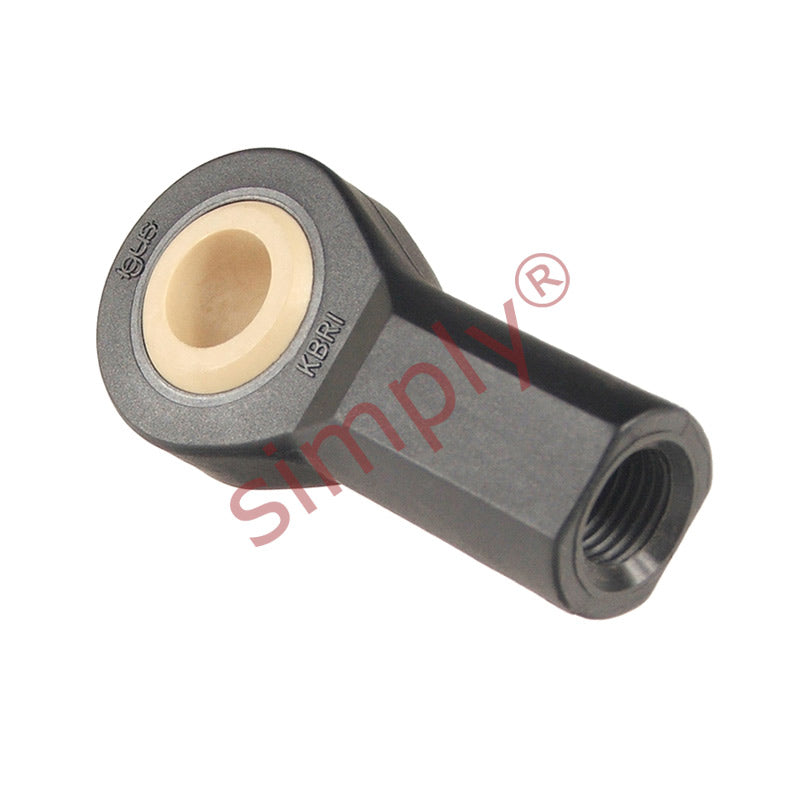

• igubal KBRI06 Right Hand Female Plastic Rod End 0.375 inch Bore 3/8-24 Thread
1 1

SKU: KBRI-06

igubal KBRI06 Right Hand Female Plastic Rod End 0.375 inch Bore 3/8-24 Thread

igubal KBRI06 Right Hand Female Plastic Rod End 0.375 inch Bore 3/8-24 Thread
€10,95 ex VAT
€10,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €8,26
9+ €7,79
19+ €7,70
29+ €7,61
39+ €7,51
49+ €7,42
59+ €6,96
69+ €6,86
79+ €6,77
89+ €6,68
99+ €6,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
3/8-24
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
9.53mm = 0.375 (3/8) inch
Technical
d1 0.375 inch
d2 1 inch
d3 3/8-24 inch
d4 0.687 inch
C1 0.394 inch
B 0.5 inch
h1 1.625 inch
l3 0.812 inch
l4 2.125 inch
W 0.562 inch
Max pivot angle 22°
Max static tensile strength (short term) 2000 N
Max static tensile strength (long term) 1000 N
Max radial load (short term) 1000 N
Max radial load (long term) 500 N
Min thread depth 0.568 inch
Max torque outside thread 7 Nm
Max torque through ball 15 Nm
Weight 12.6 g
