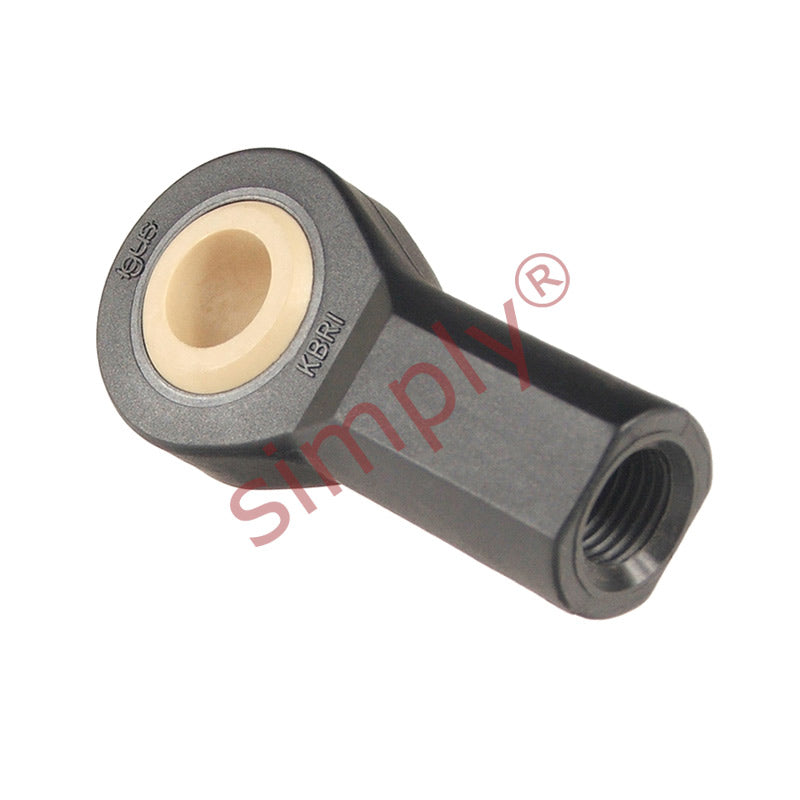

• igubal KBRI03 Right Hand Female Plastic Rod End 0.187 inch Bore 10-32 Thread
1 1

SKU: KBRI-03

igubal KBRI03 Right Hand Female Plastic Rod End 0.187 inch Bore 10-32 Thread

igubal KBRI03 Right Hand Female Plastic Rod End 0.187 inch Bore 10-32 Thread
€10,95 ex VAT
€10,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €7,62
9+ €7,19
19+ €7,10
29+ €7,02
39+ €6,93
49+ €6,85
59+ €6,42
69+ €6,33
79+ €6,25
89+ €6,16
99+ €5,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
10-32
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
4.76mm = 0.187 (3/16) inch

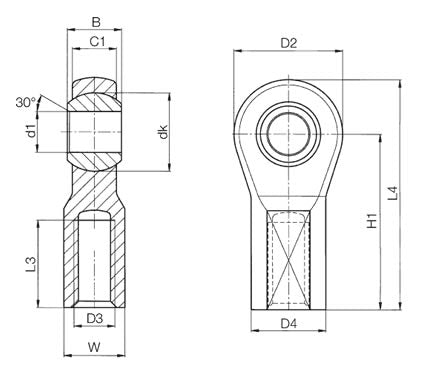

Technical
d1 0.187 inch
d2 0.625 inch
d3 10-32 inch
d4 0.406 inch
C1 0.246 inch
B 0.312 inch
h1 1.062 inch
l3 0.5 inch
l4 1.374 inch
W 0.312 inch
Max pivot angle 25°
Max static tensile strength (short term) 900 N
Max static tensile strength (long term) 450 N
Max radial load (short term) 300 N
Max radial load (long term) 150 N
Min thread depth 0.35 inch
Max torque outside thread 2 Nm
Max torque through ball 3 Nm
Weight 3.3 g
