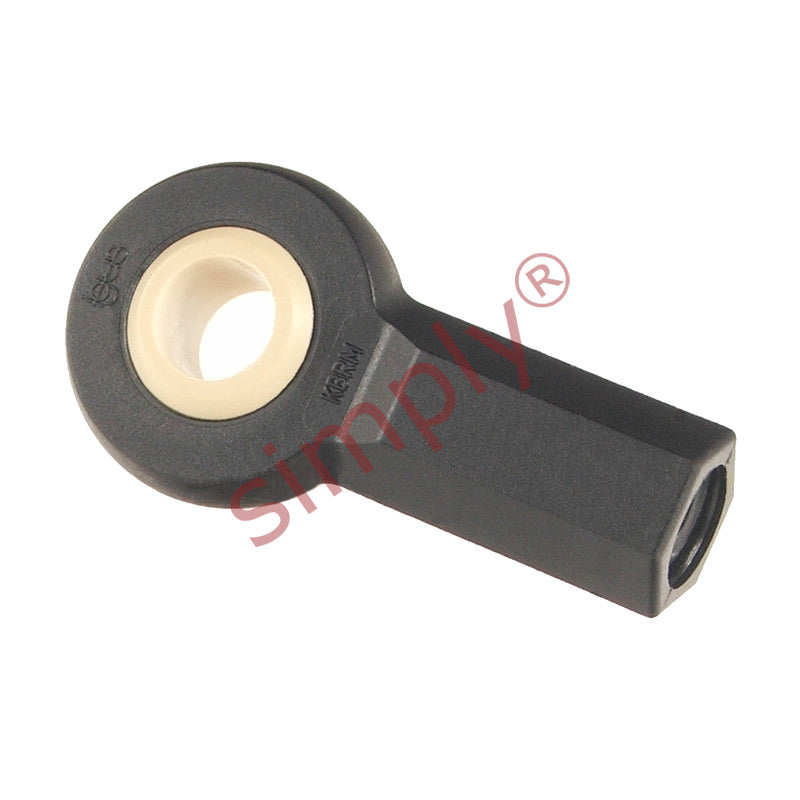

• igubal KBLM25 Left Hand Female Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days
1 1

SKU: KBLM-25

igubal KBLM25 Left Hand Female Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days

igubal KBLM25 Left Hand Female Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days
€37,95 ex VAT
€37,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €28,14
9+ €26,56
19+ €26,24
29+ €25,93
39+ €25,61
49+ €25,29
59+ €23,71
69+ €23,40
79+ €23,08
89+ €22,76
99+ €22,13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M24x2
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
25mm
Technical
d1 25mm
d2 60mm
d3 M24x2
d4 32mm
d5 41mm
C1 22mm
B 31mm
h1 94mm
l3 42mm
l4 124mm
W SW36
Max pivot angle 22°
Max static tensile strength (short term) 8500 N
Max static tensile strength (long term) 4250 N
Max radial load (short term) 2300 N
Max radial load (long term) 1150 N
Min thread depth 28mm
Max torque strength inside thread 120 Nm
Max torque through ball (standard) 60 Nm
Weight 119.8 g
