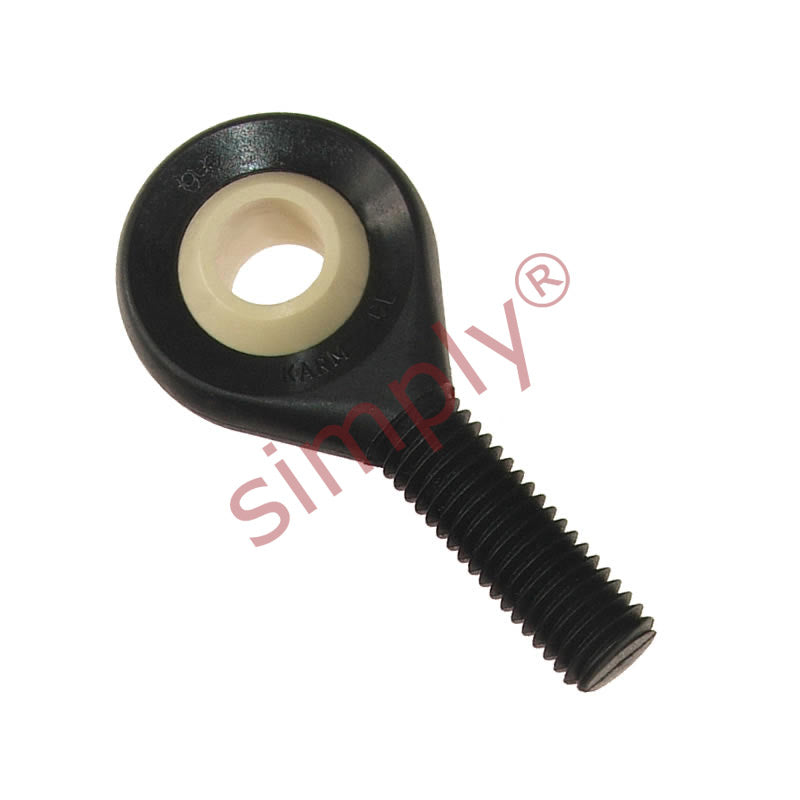

• igubal KARM12CLJ Right Hand Male Plastic Rod End 12mm Bore M12 Thread
1 1

SKU: KARM-12.CL.J

igubal KARM12CLJ Right Hand Male Plastic Rod End 12mm Bore M12 Thread

igubal KARM12CLJ Right Hand Male Plastic Rod End 12mm Bore M12 Thread
€16,95 ex VAT
€16,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,30
9+ €11,61
19+ €11,47
29+ €11,34
39+ €11,20
49+ €11,06
59+ €10,37
69+ €10,23
79+ €10,09
89+ €9,95
99+ €9,68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_CL_J_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M12
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
12mm

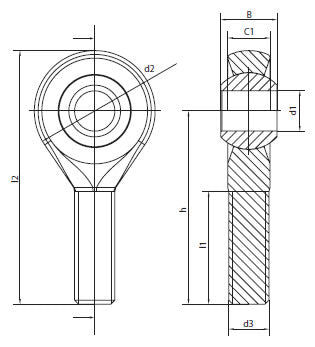

Technical
d1 12mm
d2 34mm
d3 M12
C1 12mm
B 16mm
h 54mm
l1 32mm
l2 71mm
Max pivot angle 35°
Max static tensile strength (short term) 2700 N
Max static tensile strength (long term) 1350 N
Max radial load (short term) 400 N
Max radial load (long term) 200 N
Min tread depth 22mm
Max torque strength outside thread 6 Nm
Max torque through ball (standard) 30 Nm
Max torque through ball (MH) 70 Nm
Weight 15.6 g
