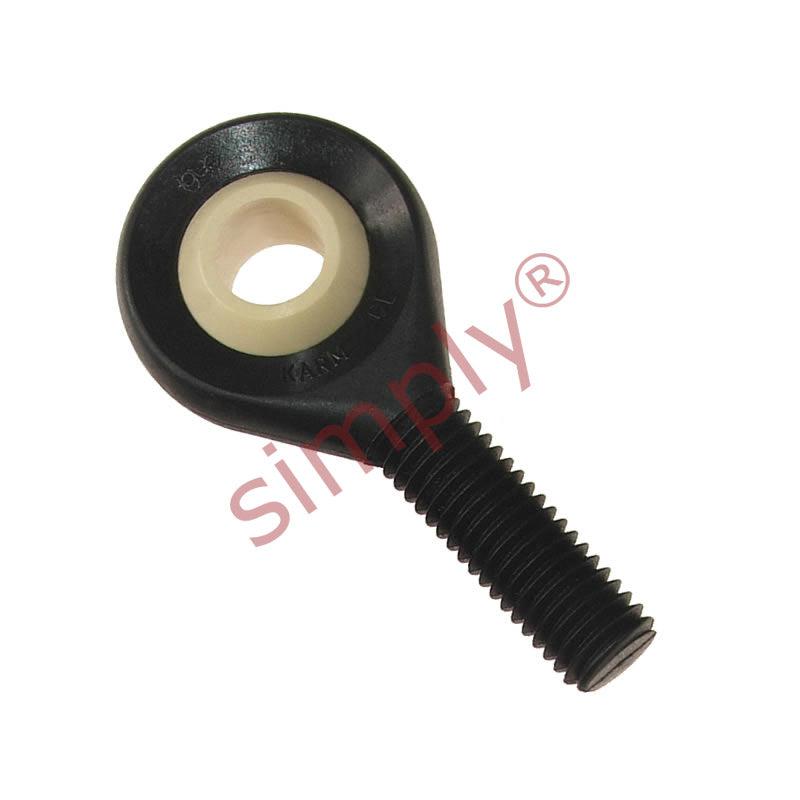

• igubal KARM10CL Right Hand Male Plastic Rod End 10mm Bore M10 Thread
1 1

SKU: KARM-10.CL

igubal KARM10CL Right Hand Male Plastic Rod End 10mm Bore M10 Thread

igubal KARM10CL Right Hand Male Plastic Rod End 10mm Bore M10 Thread
€15,95 ex VAT
€15,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €11,86
9+ €11,20
19+ €11,06
29+ €10,93
39+ €10,80
49+ €10,66
59+ €10,00
69+ €9,86
79+ €9,73
89+ €9,60
99+ €9,33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_CL_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 30mm
d3 M10
C1 10.5mm
B 14mm
h 48mm
l1 28mm
l2 63mm
Max pivot angle 35°
Max static tensile strength (short term) 2500 N
Max static tensile strength (long term) 1250 N
Max radial load (short term) 300 N
Max radial load (long term) 150 N
Min tread depth 20mm
Max torque strength outside thread 5 Nm
Max torque through ball (standard) 20 Nm
Max torque through ball (MH) 50 Nm
Weight 11.2 g
