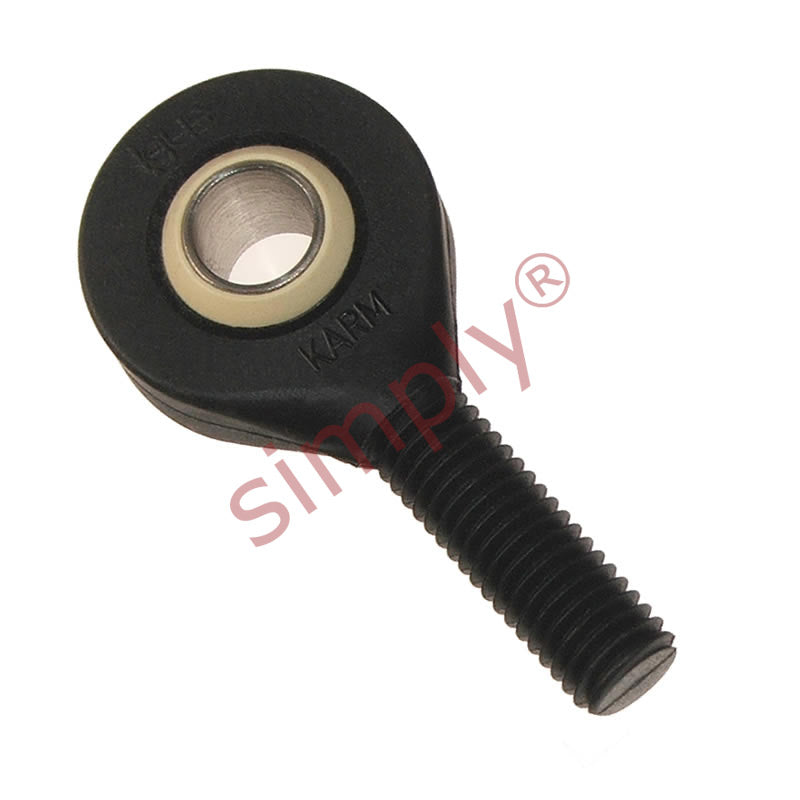

• igubal KALM20MH Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread with Metal Insert - Allow 2-3 Days
1 1

SKU: KALM-20.MH.FINE

igubal KALM20MH Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread with Metal Insert - Allow 2-3 Days

igubal KALM20MH Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread with Metal Insert - Allow 2-3 Days
€32,95 ex VAT
€32,95 ex VAT
Sale Sold out

In stock

Price Break
4+ €24,54
9+ €23,17
19+ €22,89
29+ €22,61
39+ €22,34
49+ €22,06
59+ €20,68
69+ €20,41
79+ €20,13
89+ €19,86
99+ €19,30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KALM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 50mm
d3 M20x1.5
C1 18mm
B 25mm
h 78mm
l1 45mm
l2 104mm
Max pivot angle 23°
Max static tensile strength (short term) 6000 N
Max static tensile strength (long term) 3000 N
Max radial load (short term) 1300 N
Max radial load (long term) 650 N
Min thread depth 32mm
Max torque strength outside thread 25 Nm
Max torque through ball (standard) 55 Nm
Max torque through ball (MH) 200 Nm
Weight 58 g
