SKU: K22x30x15TN-MB

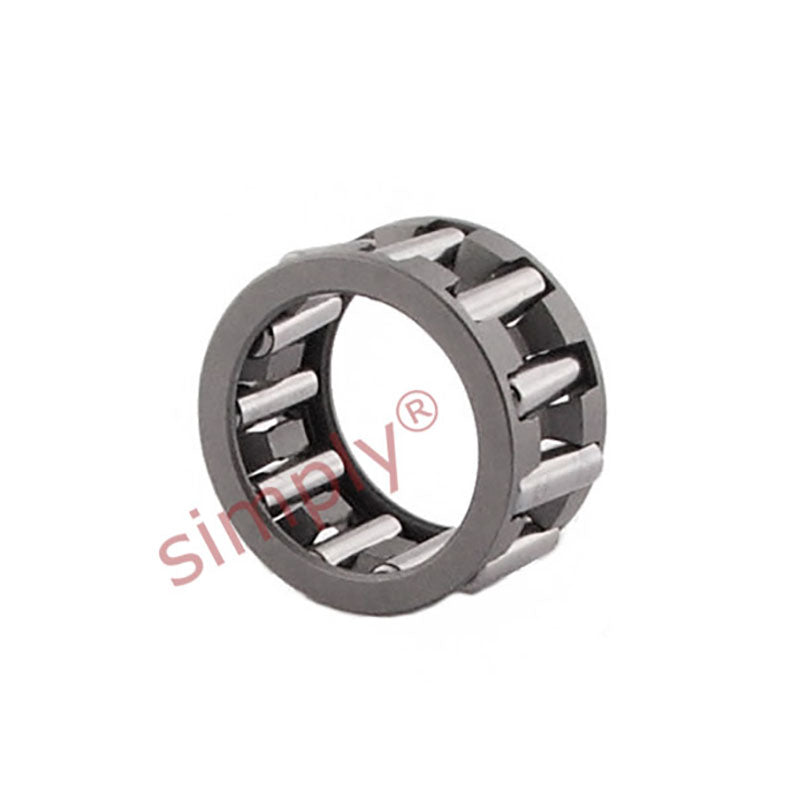

Major Brand K22x30x15TN Needle Roller Cage Assembly 22x30x15mm
- Regular price
- €15,95 ex VAT
- Sale price
- €15,95
- Regular price
-
In stock
Quantity Price Breaks
10
€14,20
19
€13,40
29
€13,24
39
€13,08
49
€12,92
74
€12,76
99
€11,96
199
€11,80
249
€11,64
499
€11,48
999
€11,17
SKU:
K22x30x15TN-MB
Major Brand K22x30x15TN Needle Roller Cage Assembly 22x30x15mm
- Regular price
- €15,95 ex VAT
- Sale price
- €15,95
- Regular price
-
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Technical
| Fw | = | 22mm |
| Ew | = | 30mm |
| U | = | 15mm |
| Dynamic load | = | 19000 N |
| Static load | = | 23600 N |
| Fatigue load limit Pu | = | 2800 N |
| Speed in grease | = | 11000 rpm |
| Speed in oil | = | 17000 rpm |
| Seal | = | G/SD22x30x4 |
| Weight | = | 18 g |
