SKU: JSC239SS-JUB
JSC239SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 227mm - 239mm Band Width 25mm
- Regular price
- €21,95 ex VAT
- Sale price
- €21,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€19,54
5
€18,44
9
€18,22
19
€18,00
49
€17,78
74
€17,56
99
€16,46
199
€16,24
249
€16,02
499
€15,80
999
€15,37
SKU:
JSC239SS-JUB
JSC239SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 227mm - 239mm Band Width 25mm
- Regular price
- €21,95 ex VAT
- Sale price
- €21,95
- Regular price
-
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

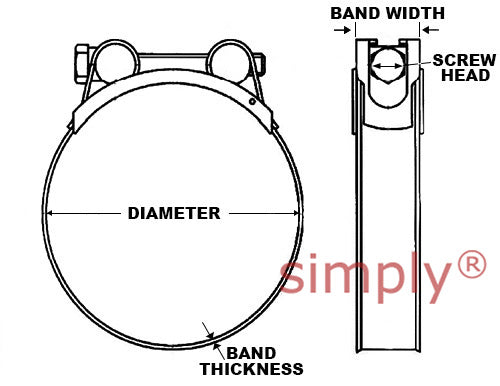

Technical
| Adjustment Range | = | 227mm - 239mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.5mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
