SKU: JSC031SS316-JUB
JSC031SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 29mm-31mm Band Width 18mm
JSC031SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 29mm-31mm Band Width 18mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
Low stock
Price Break
3+
€7,66
5+
€7,35
9+
€7,20
19+
€6,97
49+
€6,81
74+
€6,42
99+
€5,42
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Quantity
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 18mm
- Min Adjustment Range:
- 29mm
- Max Adjustment Range:
- 31mm
Technical
Technical

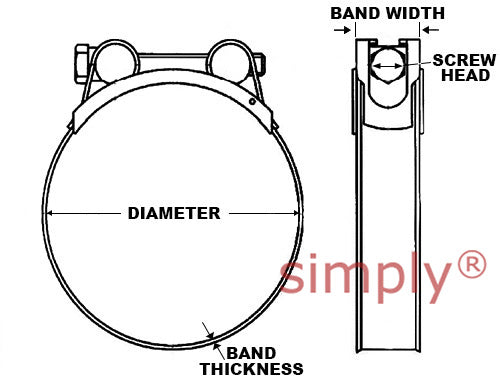

| Adjustment Range | 29mm - 31mm |
|---|---|
| Band Width (+/- 0.1) | 18mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 4.5Nm |
| Maximum Torque | 6Nm |
| Screw Head | 8mm |
