SKU: JSB060XP0

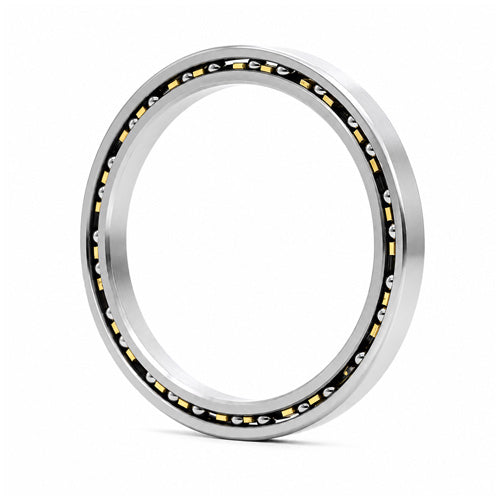

Silverthin JSB060XP0 Thin Section Sealed Four Point Contact Ball Bearing 6x6.625x0.312 inch - Allow 7-10 Days
Silverthin JSB060XP0 Thin Section Sealed Four Point Contact Ball Bearing 6x6.625x0.312 inch - Allow 7-10 Days
Equivalent to: JB060XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 152.4mm = 6 inch
- Outside Diameter:
- 168.28mm = 6-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 6 inch |
|---|---|
| D | 6.625 inch |
| Width | 0.312 inch |
| L1 | 6.136 inch |
| L2 | 6.362 inch |
| Static Radial Load | 11.396 kN |
| Dynamic Radial Load | 3.995 kN |
| Static Thrust Load | 28.482 kN |
| Dynamic Thrust Load | 9.888 kN |
| Static Moment Load | 35.968 kN |
| Dynamic Moment Load | 12.455 kN |
| Torque Max No Load | 52 Oz-In |
| Weight | 0.1996 kg |
