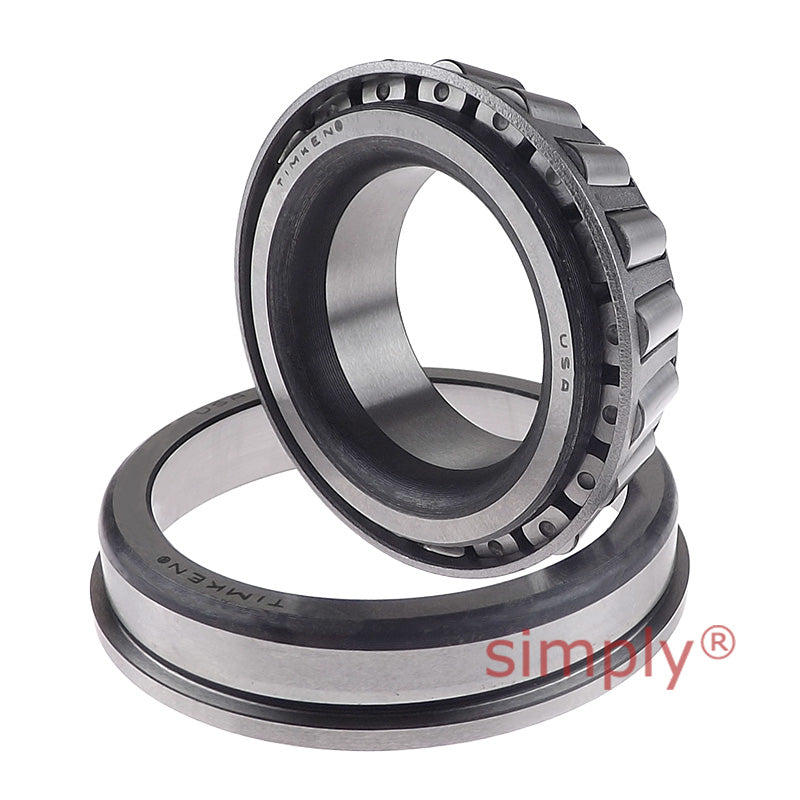

Timken JM716649/JM716610B TSF Single-Row Taper Roller Bearing 3.3465x5.1181x1.1811 inch
Timken JM716649/JM716610B TSF Single-Row Taper Roller Bearing 3.3465x5.1181x1.1811 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 30mm
Technical
Technical
| d | 85mm = 3.3465 inch |
|---|---|
| D | 130mm = 5.1181 inch |
| T1 | 11.56mm = 0.455 inch |
| Dynamic (1) C1 | 149000N |
| Factors (5) e | 0.44 |
| Factors (5) Y | 1.35 |
| Dynamic (2) C90 | 38700N |
| Dynamic (2) Ca90 | 29400N |
| Factors (5) K | 1.31 |
| Static Co | 245000N |
| Bearing B | 29mm = 1.1417 inch |
| Bearing C | 24mm = 0.9449 inch |
| Bearing a(3) | -0.3mm = -0.01 inch |
| Bearing D1 | 135.448mm = 5.3346 inch |
| Bearing C2 | 5.558mm = 0.2188 inch |
| Shaft max shaft fillet radius R(4) | 3mm = 0.12 inch |
| Shaft backing shoulder diameter da | 92mm = 3.62 inch |
| Shaft backing shoulder diameter db | 98mm = 3.86 inch |
| Housing backing shoulder diameter Da | 127mm = 5 inch |
| G1 | 117 |
| G2 | 36.6 |
| Cg | 0.1303 |
