SKU: HOI-075

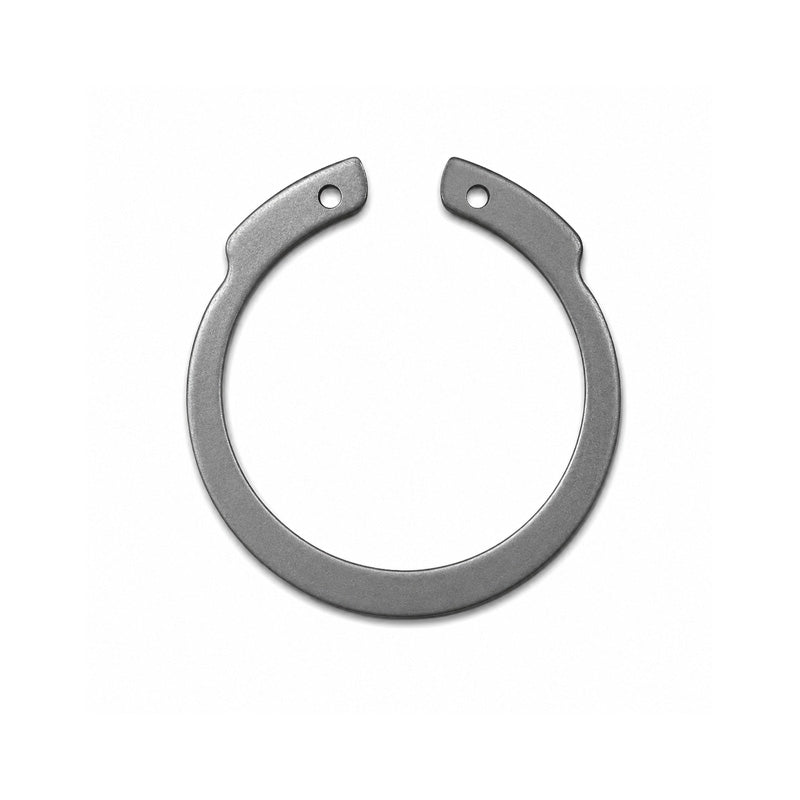

Inverted Internal Circlip 3/4 inch Diameter
Inverted Internal Circlip 3/4 inch Diameter
Equivalent to: HOI-075
Out of stock
Description
Description
Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Circlips - Economy Quality
Technical
Technical
| --- | Housing Diameter |
|---|---|
| Dh - Imperial | 0.75 inch = 3/4 inch |
| Dh - Metric | 19mm |
| --- | Groove Size |
| Dg - Diameter | 0.796 inch |
| Diameter Tolerance | +.002 to -.004* |
| W - Width | 0.039 inch |
| Width Tolerance | +.003 to -.000 |
| d - Depth | 0.023 inch |
| --- | Circlip Size and Weight |
| Df - Free Diameter | 0.808 inch |
| Free Diameter Tolerance | +.010 to -.005 |
| T - Thickness | 0.035 inch |
| Thickness Tolerance | 0.002 |
| Weight (1000pcs) lbs | 1.3 lbs |
| --- | Clearance Diameter |
| L1 - Compressed in Housing | 0.56 inch |
| L2 - Released in Groove | 0.605 inch |
| --- | Thrust Loads (Square Corner Abutment) |
| Pr - Ring Safety Factor of 4 | 1675 lbs |
| Pg - Groove Safety Factor of 2 | 600 lbs |
| --- | Maximum Section (Including Lug) |
| S max - Maximum Section | 0.085 inch |
| Maximum Section Tolerance | 0.004 |
| --- | Minimum Section |
| S max - Minimum Section | 0.042 inch |
| Minimum Section Tolerance | 0.004 |
| --- | Hole Diameter |
| R - Hole Diameter | 0.042 inch |
| Hole Diameter Tolerance | +.010 to -.002 |
| --- | Gap Width (Ring in Groove) |
| G min - Gap Width | 0.175 inch |
| --- | Allowable Corner (Radius and Chamfers) |
| R max - Allowable Corner for Radius | 0.05 inch |
| Ch max - Allowable Corner for Chamfers | 0.031 |
| --- | Maximum Load (with R max or Ch max) |
| P"r - Maximum Load | 850 |
| --- | Edge Margin |
| Y - Edge Margin | 0.069 inch |
