SKU: HMV86E-SKF
SKF HMV86E Metric Hydraulic Nut Tr430x5 Thread
SKF HMV86E Metric Hydraulic Nut Tr430x5 Thread
Regular price
€5.893,95
ex VAT
Regular price
Sale price
€5.893,95
ex VAT
In stock
Price Break
10+
€4.478,67
19+
€4.428,35
29+
€4.378,02
39+
€4.327,70
49+
€4.277,38
74+
€4.227,06
99+
€4.176,74
199+
€4.126,41
249+
€4.076,09
499+
€4.025,77
999+
€3.975,45
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality

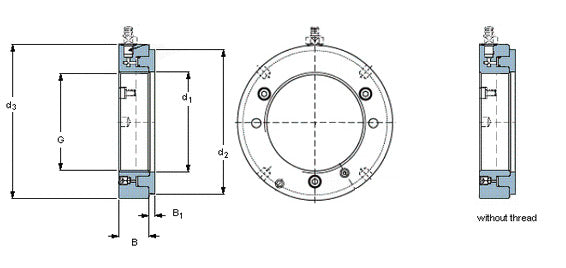

Technical
Technical
| G Thread | Tr430x5 |
|---|---|
| d1 | 432 |
| d2 | 532mm |
| d3 | 556mm |
| B | 62mm |
| B1 | 11mm |
| Permitted piston displacement | 17mm |
| Piston area | 40800mm2 |
