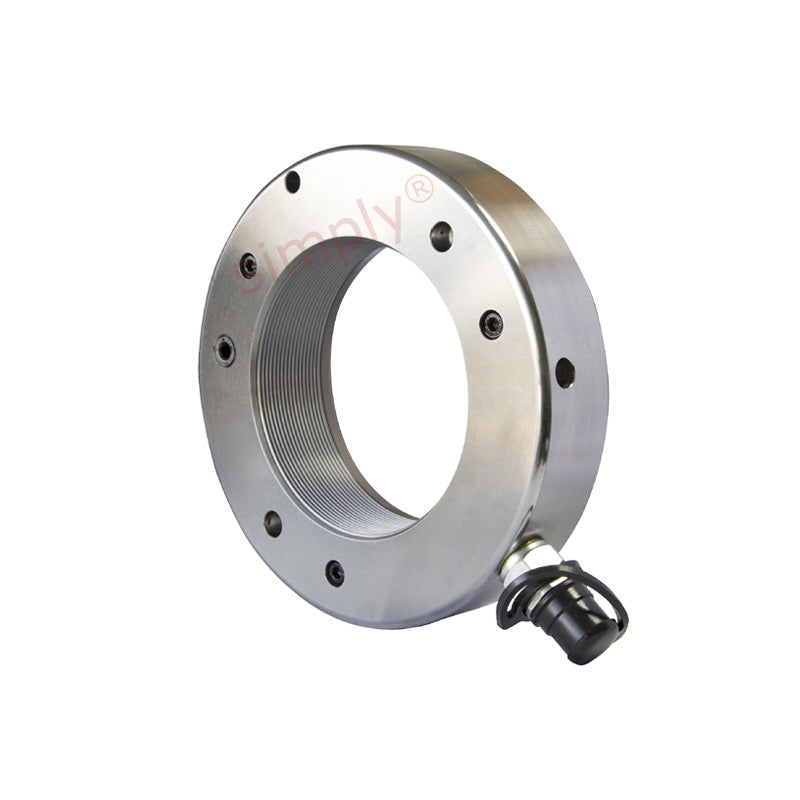

SKF HMV180E Metric Hydraulic Nut Tr900x7 Thread
SKF HMV180E Metric Hydraulic Nut Tr900x7 Thread
Regular price
€16.852,95
ex VAT
Regular price
Sale price
€16.852,95
ex VAT
In stock
Price Break
10+
€12.806,96
19+
€12.663,07
29+
€12.519,17
39+
€12.375,27
49+
€12.231,37
74+
€12.087,47
99+
€11.943,57
199+
€11.799,67
249+
€11.655,78
499+
€11.511,88
999+
€11.367,98
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | Tr900x7 |
|---|---|
| d1 | 902 |
| d2 | 1043mm |
| d3 | 1075mm |
| B | 86mm |
| B1 | 17mm |
| Permitted piston displacement | 30mm |
| Piston area | 124100mm2 |
