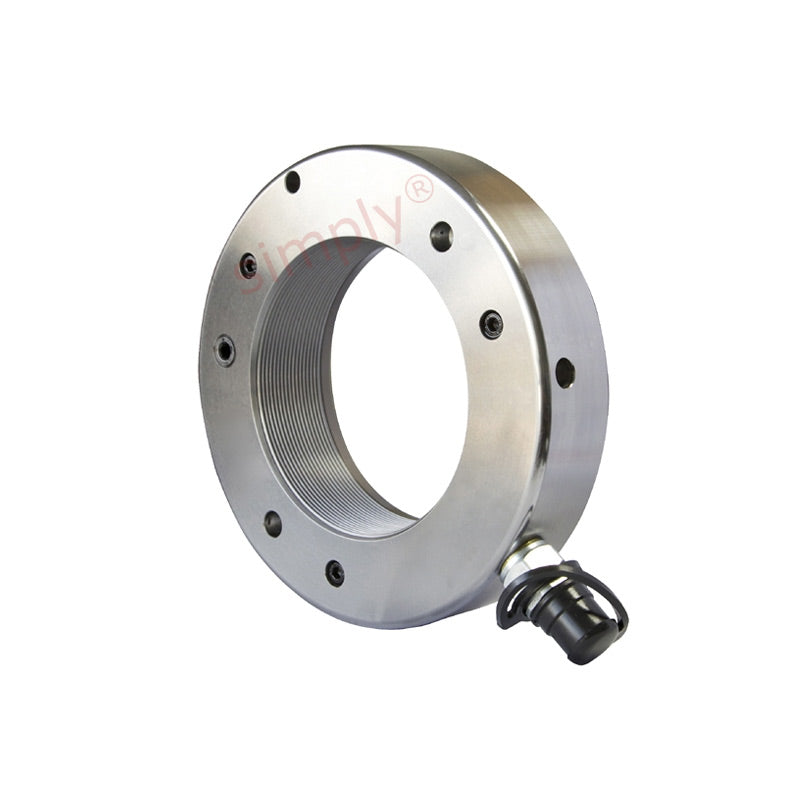

SKF HMV150E Metric Hydraulic Nut Tr750x7 Thread
SKF HMV150E Metric Hydraulic Nut Tr750x7 Thread
Regular price
€11.209,95
ex VAT
Regular price
Sale price
€11.209,95
ex VAT
In stock
Price Break
10+
€8.518,43
19+
€8.039,87
29+
€7.944,15
39+
€7.848,44
49+
€7.752,73
74+
€7.657,02
99+
€7.178,45
199+
€7.082,74
249+
€6.987,03
499+
€6.891,31
999+
€6.699,89
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | Tr750x7 |
|---|---|
| d1 | 752 |
| d2 | 883mm |
| d3 | 912mm |
| B | 79mm |
| B1 | 15mm |
| Permitted piston displacement | 25mm |
| Piston area | 95200mm2 |
