SKU: HMV126E-SKF

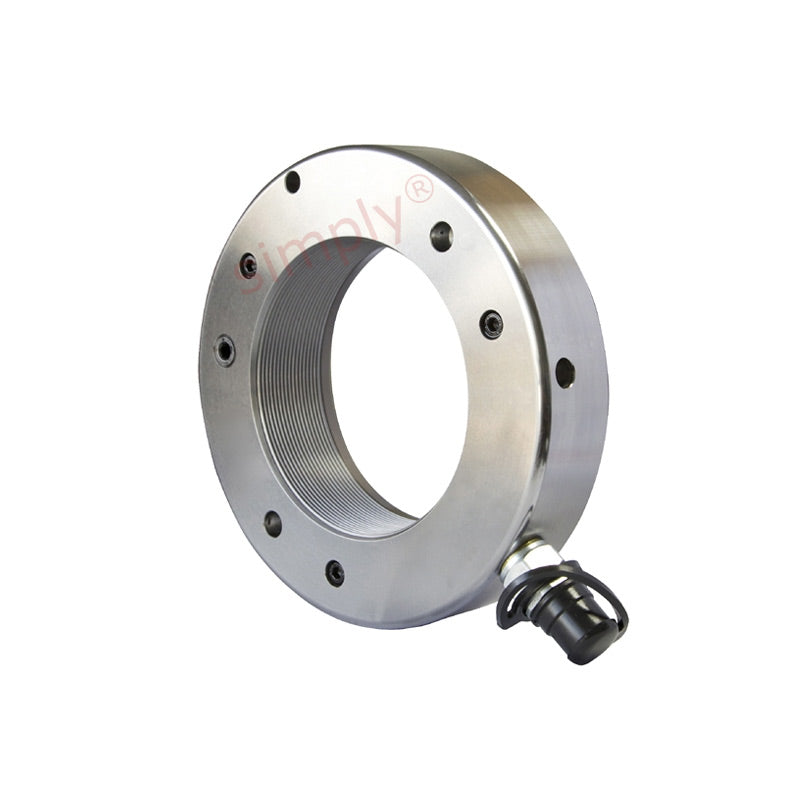

SKF HMV126E Metric Hydraulic Nut Tr630x6 Thread
SKF HMV126E Metric Hydraulic Nut Tr630x6 Thread
Regular price
€9.490,95
ex VAT
Regular price
Sale price
€9.490,95
ex VAT
In stock
Price Break
10+
€7.212,32
19+
€7.131,29
29+
€7.050,25
39+
€6.969,21
49+
€6.888,17
74+
€6.807,14
99+
€6.726,10
199+
€6.645,06
249+
€6.564,02
499+
€6.482,99
999+
€6.401,95
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | Tr630x6 |
|---|---|
| d1 | 632 |
| d2 | 754mm |
| d3 | 782mm |
| B | 74mm |
| B1 | 14mm |
| Permitted piston displacement | 23mm |
| Piston area | 72900mm2 |
