SKU: HMV-31-EBF-HN-SNR

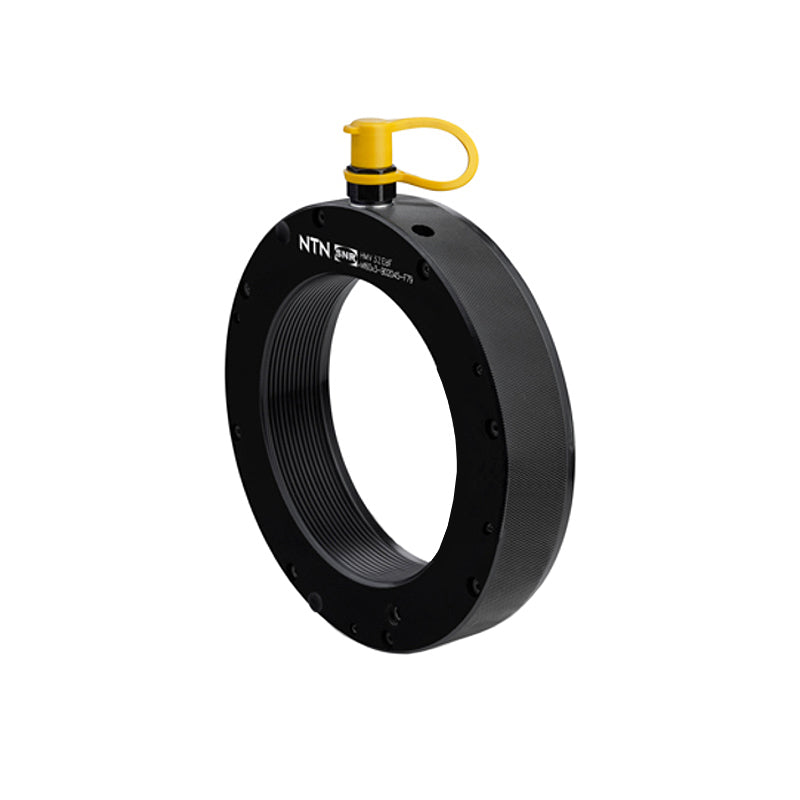

SNR HMV31 Metric Hydraulic Nut with M155x3 Thread - Allow 2-3 Days
SNR HMV31 Metric Hydraulic Nut with M155x3 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M155x3
- Inside Diameter:
- 155.5mm
- Outside Diameter:
- 226mm
- Width:
- 46mm
- Flange Width:
- 7mm
Technical
Technical
| HMV | HMV31 |
|---|---|
| Thread G | M155x3 |
| Outside Diameter D | 226mm |
| Total Width B | 46mm |
| Piston Diameter max. d2 | 222mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 39mm |
| Diameter d1 | 155.5mm |
| Piston Surface Area | 8450mm2 |
| Weight | 7.2kg |
