SKU: HK6032-MB

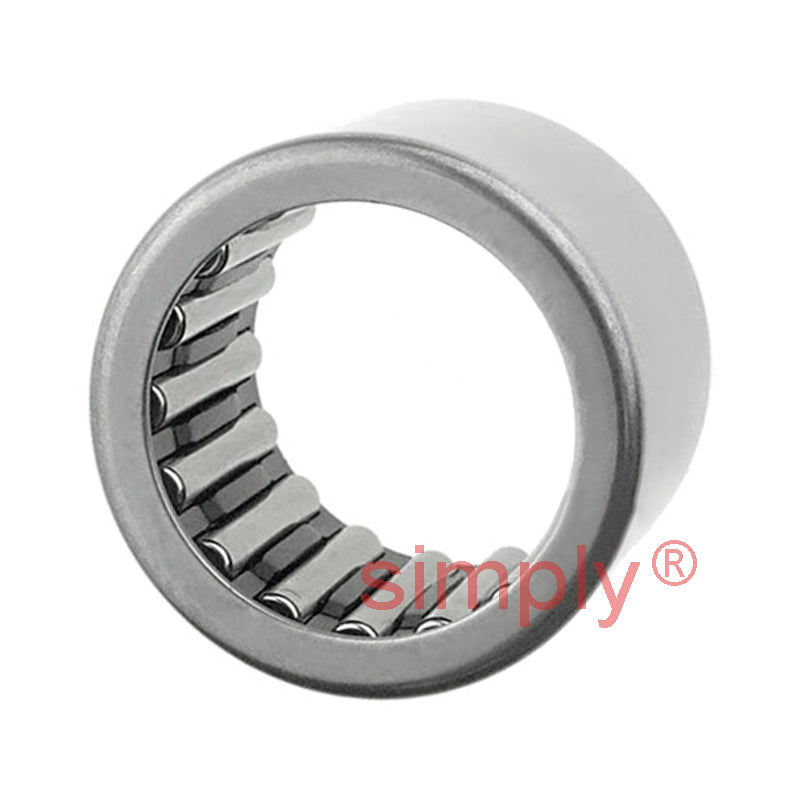

Major Brand HK6032 Drawn Cup Type Needle Roller Bearing with Two Open Ends 60x68x32mm
Major Brand HK6032 Drawn Cup Type Needle Roller Bearing with Two Open Ends 60x68x32mm
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
10+
€26,59
19+
€25,10
29+
€24,80
39+
€24,50
49+
€24,20
74+
€23,90
99+
€22,41
199+
€22,11
249+
€21,81
499+
€21,51
999+
€20,91
Quantity
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 68mm
- Width:
- 32mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 68mm |
| C | 32mm |
| Dynamic load | 51200 N |
| Static load | 137000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| r1r2 min | 0.8mm |
| Da max | 63mm |
| ra max | 0.8mm |
| Weight | 140 g |
