SKU: HK5520-MB

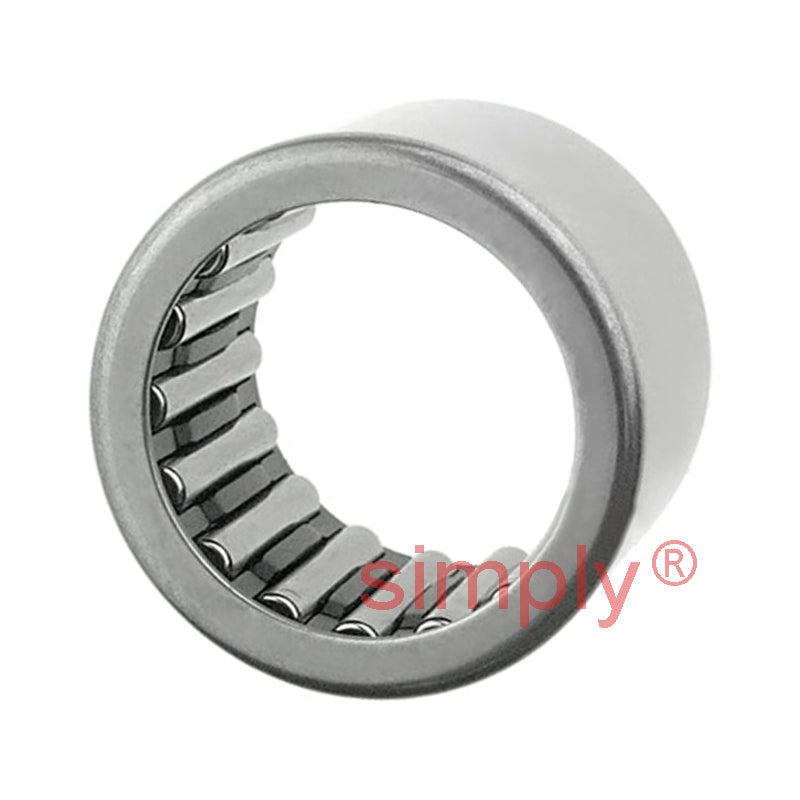

Major Brand HK5520 Drawn Cup Type Needle Roller Bearing with Two Open Ends 55x63x20mm
Major Brand HK5520 Drawn Cup Type Needle Roller Bearing with Two Open Ends 55x63x20mm
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
In stock
Price Break
10+
€14,18
19+
€13,39
29+
€13,23
39+
€13,07
49+
€12,91
74+
€12,75
99+
€11,95
199+
€11,79
249+
€11,63
499+
€11,47
999+
€11,15
Quantity
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 63mm
- Width:
- 20mm
Technical
Technical
| Fw | 55mm |
|---|---|
| D | 63mm |
| C | 20mm |
| Dynamic load | 30300 N |
| Static load | 67000 N |
| Fatigue load limit Pu | 8300 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| r1r2 min | 0.8mm |
| Da max | 58mm |
| ra max | 0.8mm |
| Inner ring | LR50x55x20.5 |
| Weight | 74 g |
