SKU: HK4512-MB

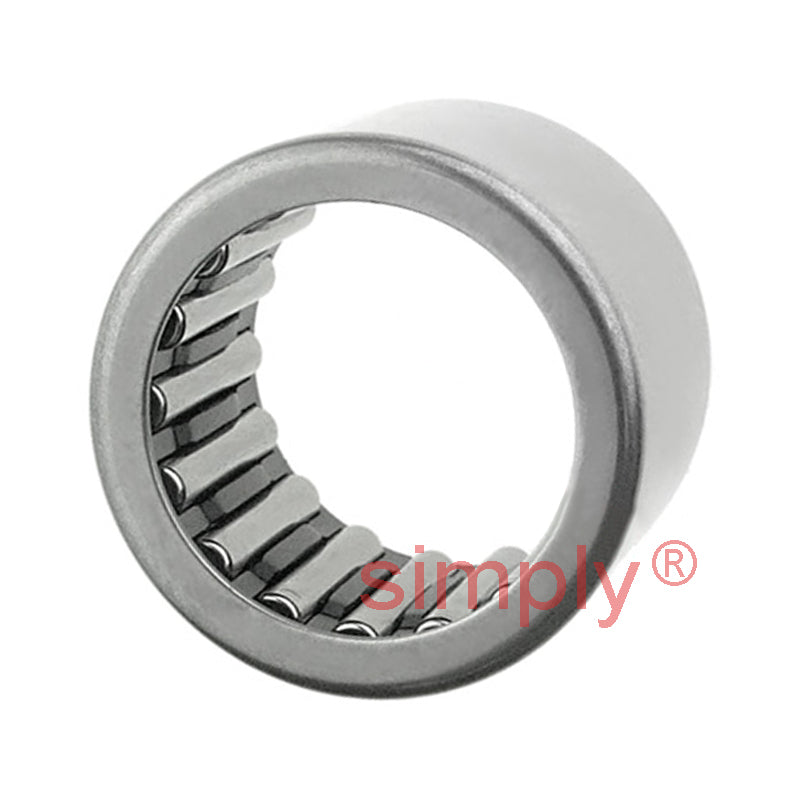

Major Brand HK4512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 45x52x12mm
Major Brand HK4512 Drawn Cup Type Needle Roller Bearing with Two Open Ends 45x52x12mm
Regular price
€15,95
ex VAT
Regular price
Sale price
€15,95
ex VAT
In stock
Price Break
10+
€11,99
19+
€11,31
29+
€11,18
39+
€11,04
49+
€10,91
74+
€10,77
99+
€10,10
199+
€9,97
249+
€9,83
499+
€9,70
999+
€9,43
Quantity
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 52mm |
| C | 12mm |
| Dynamic load | 14200 N |
| Static load | 27500 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| r1r2 min | 0.8mm |
| Da max | 47mm |
| ra max | 0.8mm |
| Seal | G/SD45x52x4 |
| Weight | 33 g |
