SKU: HK2218RS-MB

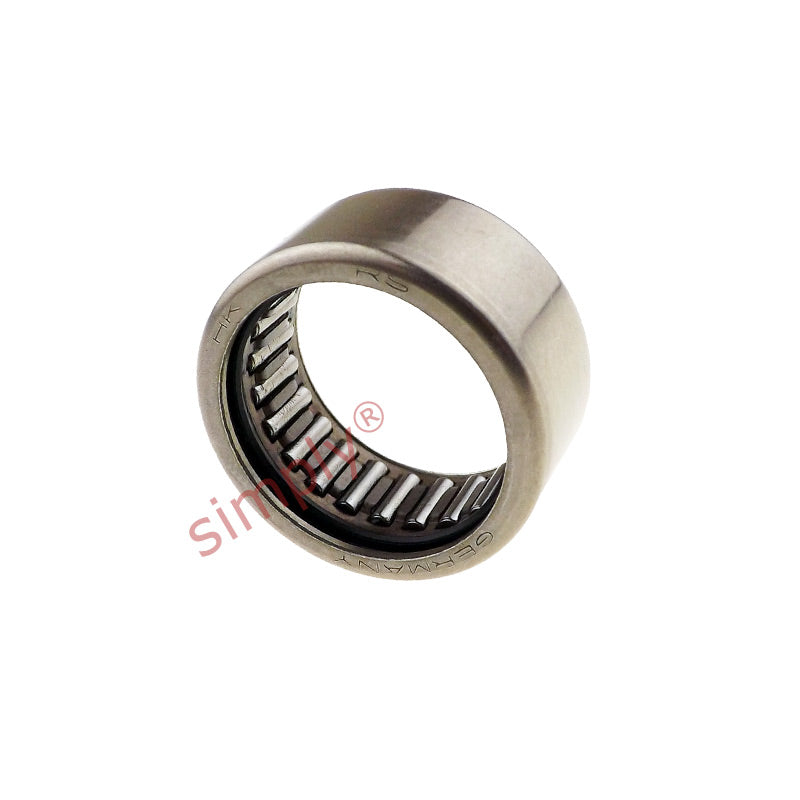

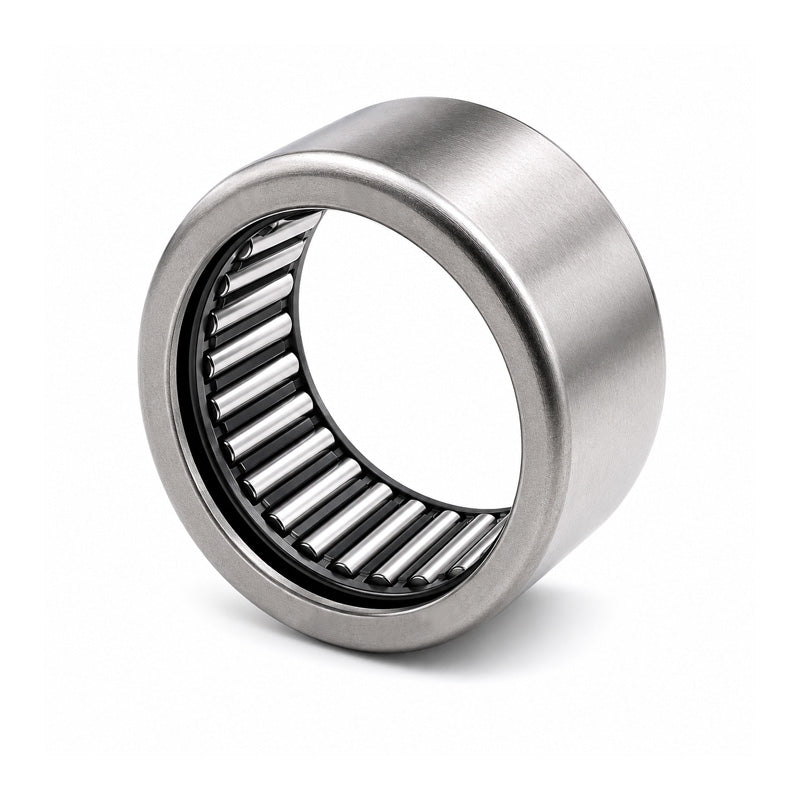

Major Brand HK2218RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 22x28x18mm
Major Brand HK2218RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 22x28x18mm
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
10+
€7,94
19+
€7,50
29+
€7,41
39+
€7,32
49+
€7,23
74+
€7,14
99+
€6,69
199+
€6,60
249+
€6,51
499+
€6,43
999+
€6,25
Quantity
Couldn't load pickup availability
Description
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 18mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 18mm |
| Dynamic load | 13000 N |
| Static load | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x23 |
| Weight | 24 g |
