SKU: HK1516LL/3AS-NTN
NTN HK1516LL/3AS Drawn Cup Needle Roller Bearing with Open End 15x21x16mm - Allow 2-3 Days
NTN HK1516LL/3AS Drawn Cup Needle Roller Bearing with Open End 15x21x16mm - Allow 2-3 Days
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
3+
€5,55
4+
€5,24
9+
€5,18
19+
€5,12
49+
€5,05
99+
€4,99
499+
€4,68
999+
€4,62
1999+
€4,56
2999+
€4,49
4999+
€4,37
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 16mm
Technical
Technical

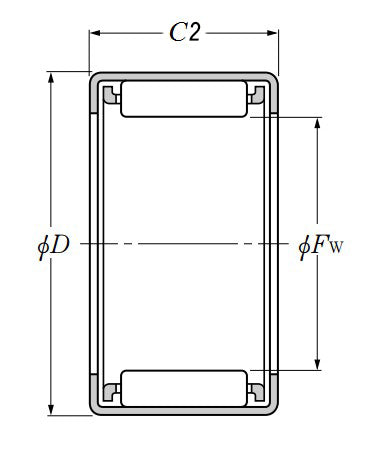

| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 21mm |
| C2 - Width of drawn cup LL | 16mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X15X16.5 |
| Cr - Dynamic load rating | 7.5 kN |
| C0r - Static load rating | 9.1 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
