SKU: HH924349/HH924310D/HH924349XA-TIM

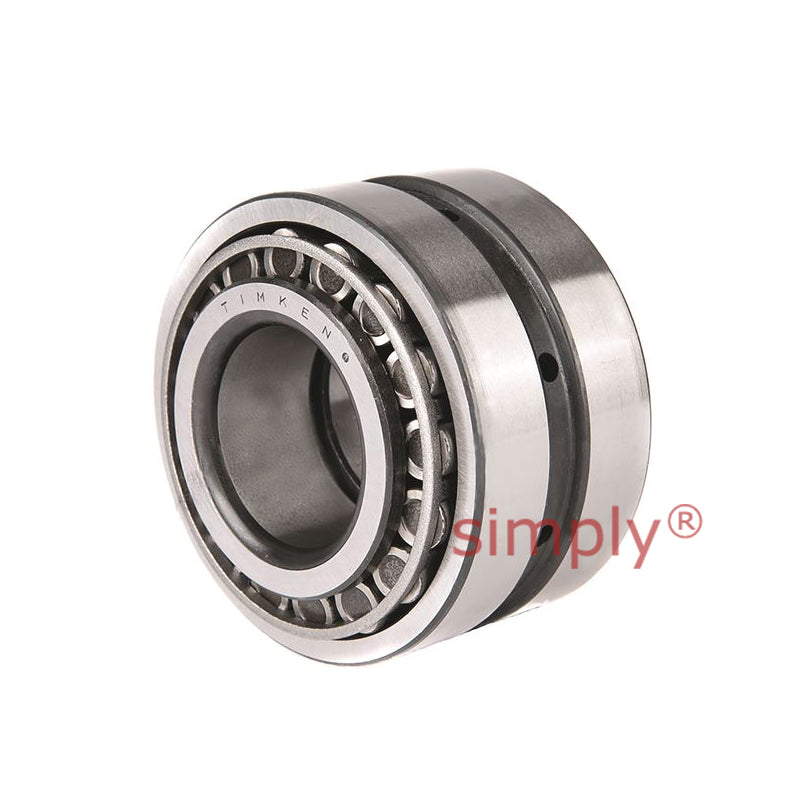

Timken HH924349/HH924310D/HH924349XA TDO Double Outer Race Taper Roller Bearing 4.375x9.5x6.25x4.25 inch
Timken HH924349/HH924310D/HH924349XA TDO Double Outer Race Taper Roller Bearing 4.375x9.5x6.25x4.25 inch
Out of stock
Description
Description

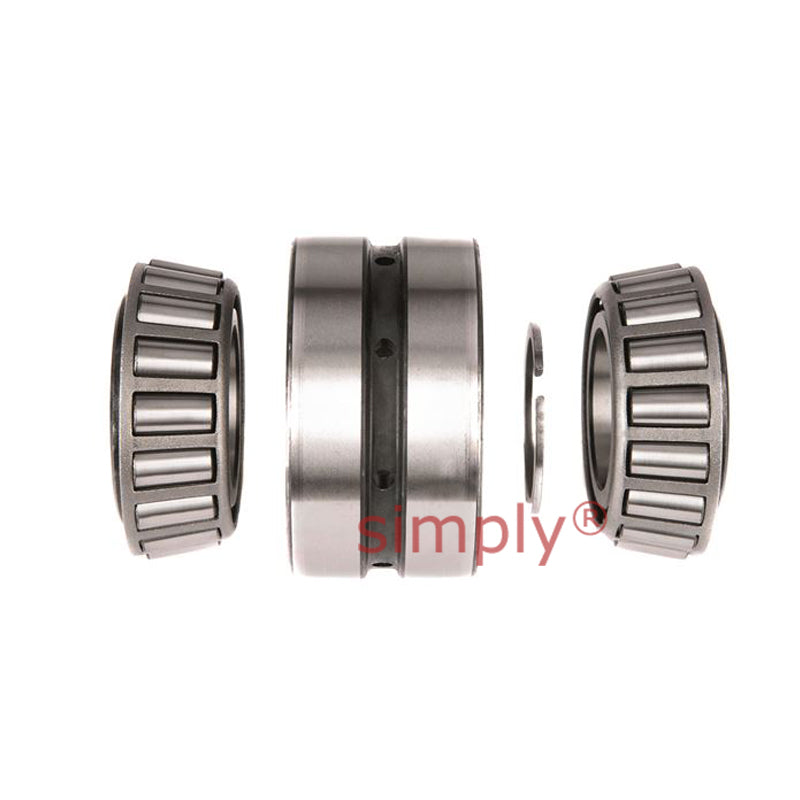

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 111.13mm = 4.375 inch
- Outside Diameter:
- 241.30mm = 9.5 inch
- Width:
- 158.75mm = 6.25 inch
Technical
Technical
| d | 111.125mm = 4.375 inch |
|---|---|
| D | 241.3mm = 9.5 inch |
| T | 158.75mm = 6.25 inch |
| C | 107.95mm = 4.25 inch |
| Dynamic (1) C1 | 1080000N |
| Factors (5) e | 0.73 |
| Factors (5) Y1 | 0.92 |
| Factors (5) Y2 | 1.37 |
| Dynamic (2) C90 | 161000N |
| Dynamic (2) Ca90 | 202000N |
| Dynamic (2) C90(2) | 281000N |
| Factors (5) K | 0.8 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 157mm = 6.18 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 226mm = 8.9 inch |
| G1 | 306 |
| G2 | 37.3 |
| Cg | 0.1432 |
