SKU: HCT310-32

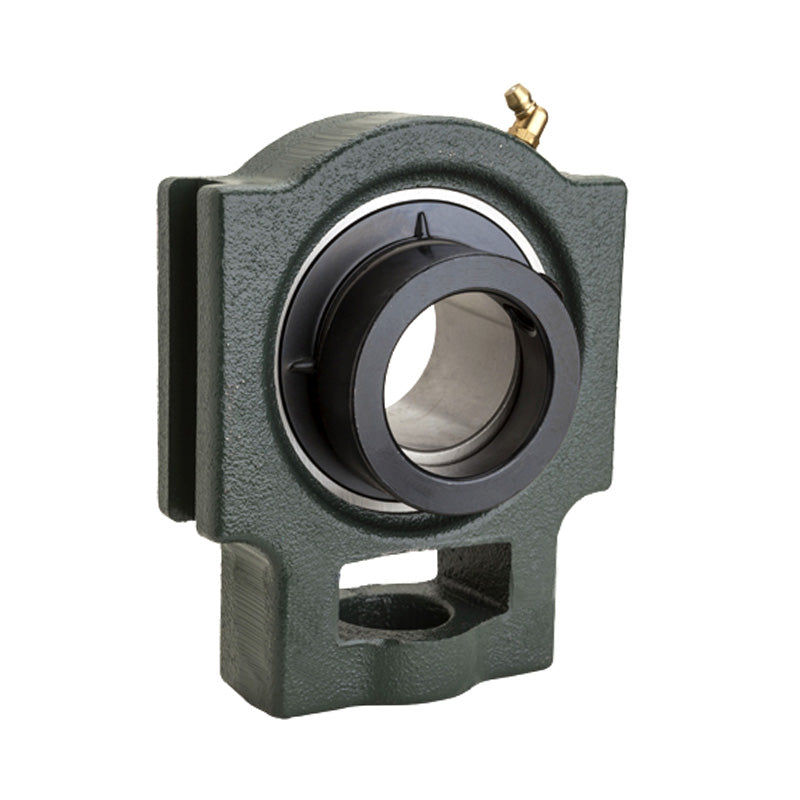

HCT310-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Eccentric Collar Insert
HCT310-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- HCT
Technical
Technical
| d | 2 inch |
|---|---|
| o | 27mm |
| g | 20mm |
| p | 98mm |
| q | 61mm |
| s | 37mm |
| b | 106mm |
| k | 20mm |
| e | 140mm |
| a | 151mm |
| w | 191mm |
| j | 61mm |
| l | 40mm |
| r | 74mm |
| h | 117mm |
| Bi | 66.6mm |
| n | 24.6mm |
| Bearing No. | HC310-32 |
| Housing No. | T310 |
| Weight | 5.07 kg |
