SKU: HCT305-16

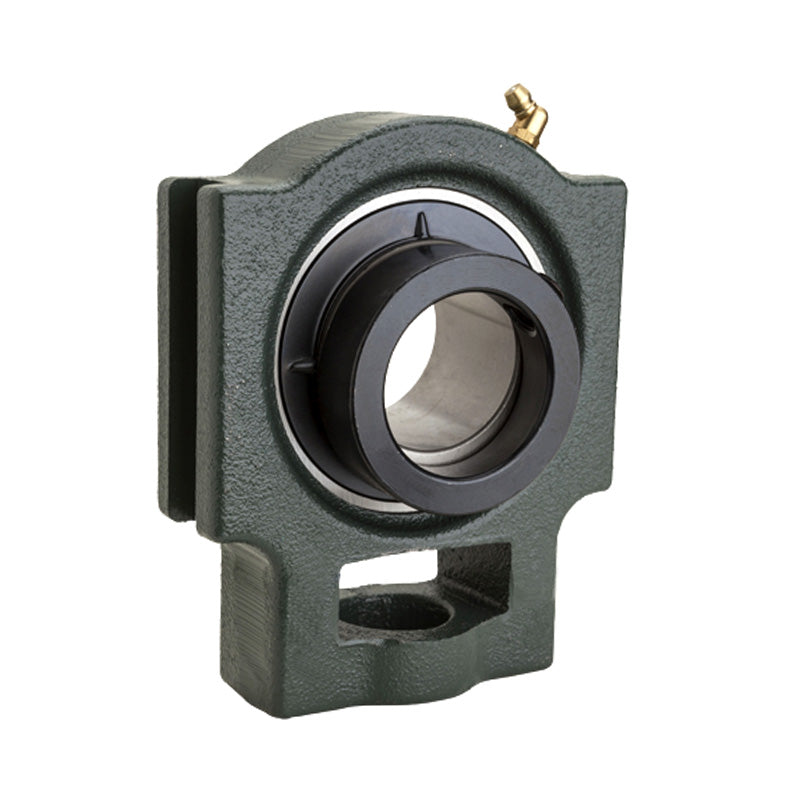

HCT305-16 Imperial Cast Iron Take Up Unit Housing with 1 inch Bore Eccentric Collar Insert
HCT305-16 Imperial Cast Iron Take Up Unit Housing with 1 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- HCT
Technical
Technical
| d | 1 inch |
|---|---|
| o | 16mm |
| g | 12mm |
| p | 62mm |
| q | 36mm |
| s | 26mm |
| b | 65mm |
| k | 12mm |
| e | 80mm |
| a | 89mm |
| w | 122mm |
| j | 36mm |
| l | 26mm |
| r | 46mm |
| h | 76mm |
| Bi | 46.8mm |
| n | 16.7mm |
| Bearing No. | HC305-16 |
| Housing No. | T305 |
| Weight | 1.41 kg |
