SKU: HCFL311-32

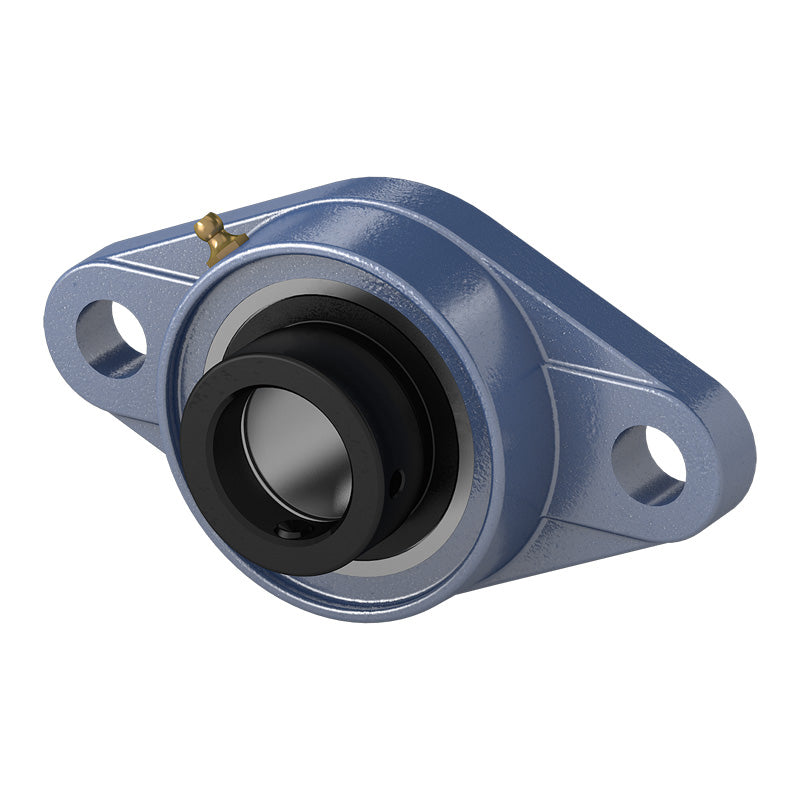

HCFL311-32 Imperial Two Bolt Oval Cast Iron Oval Housing with 2 inch Bore Eccentric Collar Insert
HCFL311-32 Imperial Two Bolt Oval Cast Iron Oval Housing with 2 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCFL300 Series Heavy Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- HCFL
- Bolt Hole Centres:
- 198mm
Technical
Technical
| d | 2 inch |
|---|---|
| a | 250mm |
| e | 198mm |
| i | 30mm |
| g | 20mm |
| l | 52mm |
| s | 25mm |
| b | 150mm |
| z | 75.2mm |
| B1 | 55.6mm |
| n | 27.8mm |
| Bolt | M22 |
| Bearing No. | HC311-32 |
| Housing No. | FL311 |
| Weight | 5.3 kg |
