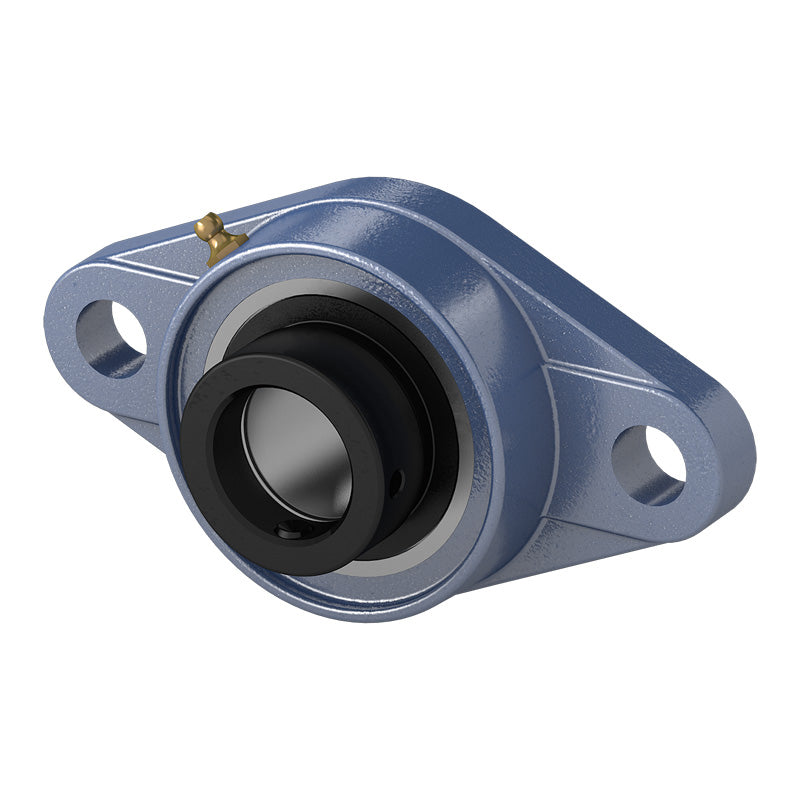

HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
Regular price
€100,95
ex VAT
Regular price
Sale price
€100,95
ex VAT
In stock
Price Break
3+
€76,25
4+
€71,96
9+
€71,11
19+
€70,25
49+
€69,39
99+
€68,54
499+
€64,25
999+
€63,40
1999+
€62,54
2999+
€61,68
4999+
€59,97
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- HCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 265mm |
| e | 216mm |
| i | 31mm |
| g | 22mm |
| l | 54mm |
| s | 23mm |
| b | 160mm |
| z | 82.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | HC214 |
| Housing no | FL214 |
| Weight | 5.53 kg |
