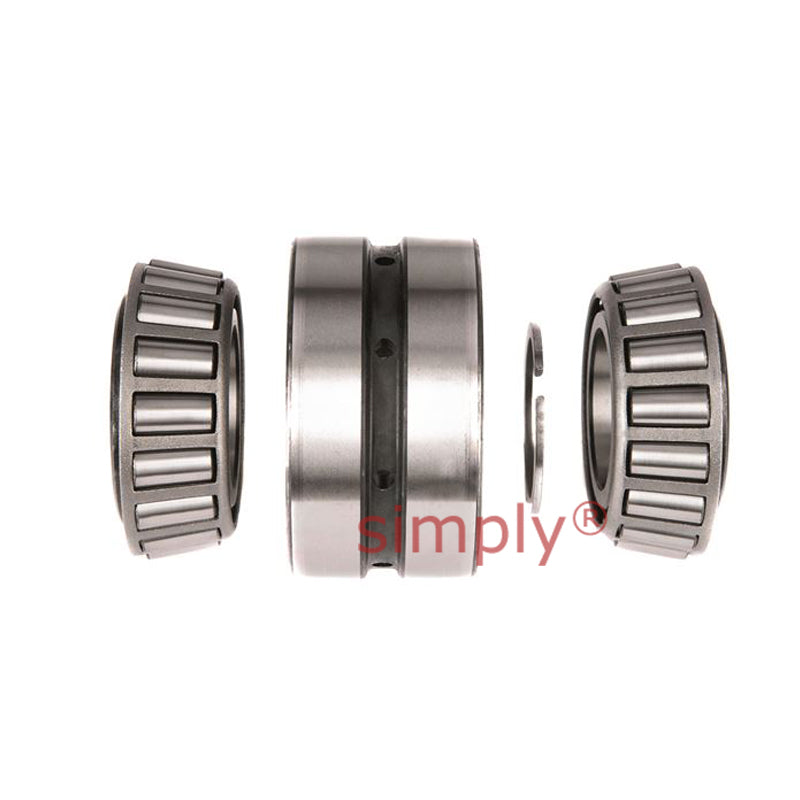

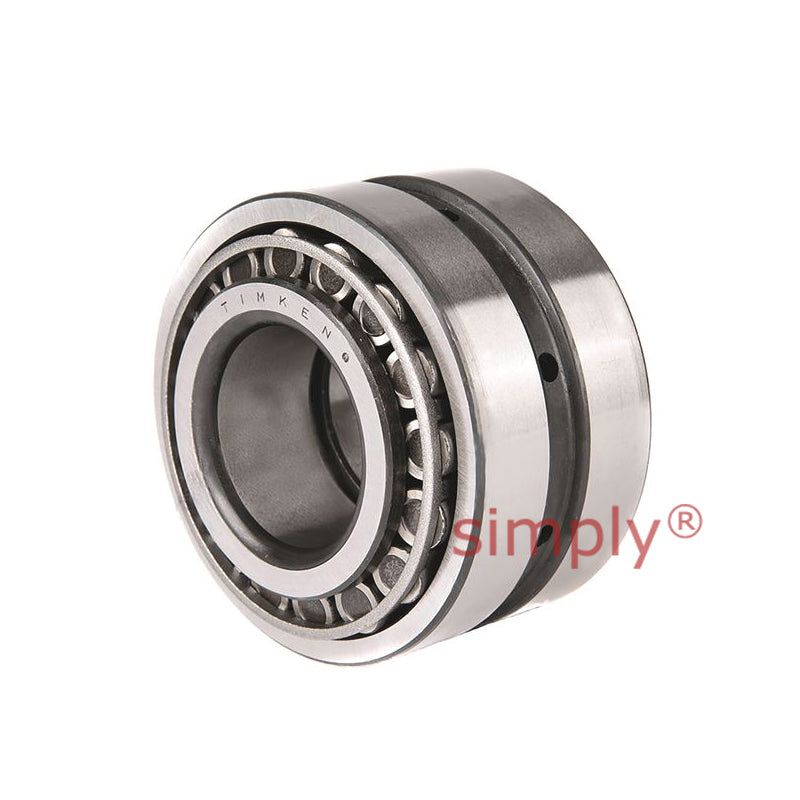

Timken H247535/H247510CD/H247535XA TDO Double Outer Race Taper Roller Bearing 7.875x15.125x9.375x7.625 inch
Timken H247535/H247510CD/H247535XA TDO Double Outer Race Taper Roller Bearing 7.875x15.125x9.375x7.625 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 200.03mm = 7.875 inch
- Outside Diameter:
- 384.18mm = 15.125 inch
- Width:
- 238.13mm = 9.375 inch
Technical
Technical
| d | 200.025mm = 7.875 inch |
|---|---|
| D | 384.175mm = 15.125 inch |
| T | 238.125mm = 9.375 inch |
| C | 193.675mm = 7.625 inch |
| Dynamic (1) C1 | 2860000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 426000N |
| Dynamic (2) Ca90 | 242000N |
| Dynamic (2) C90(2) | 741000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 241mm = 9.49 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 362mm = 14.26 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 11.7mm = 0.46 inch |
| G1 | 1960 |
| G2 | 148 |
| Cg | 0.1638 |
