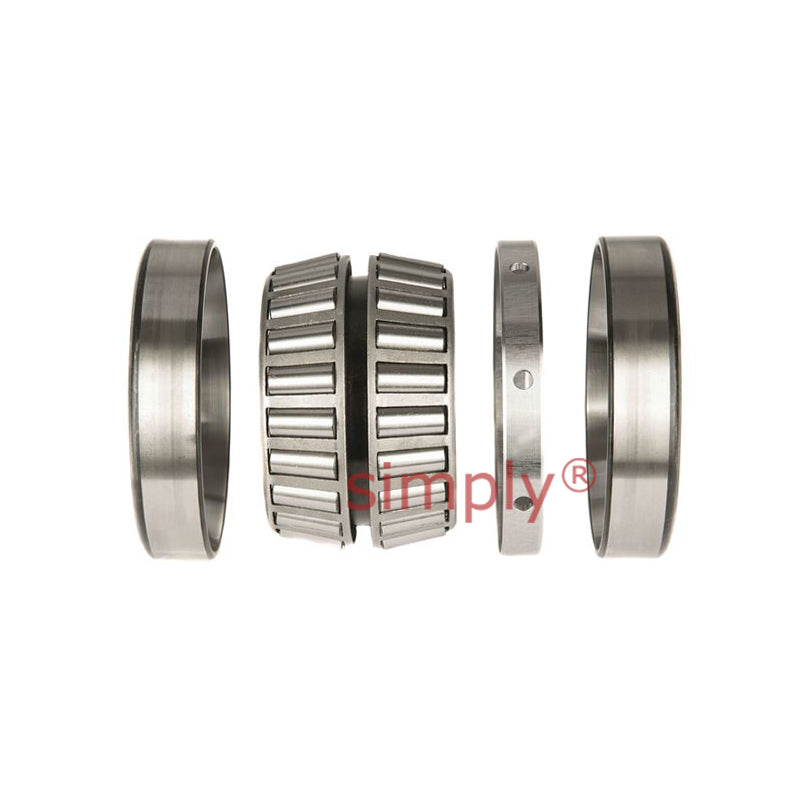

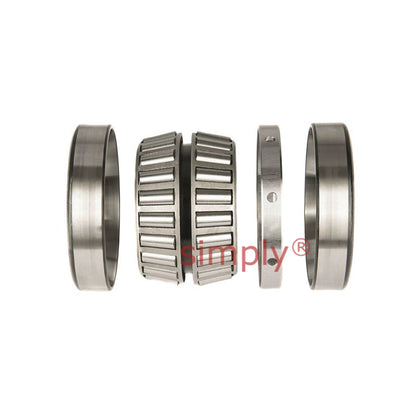

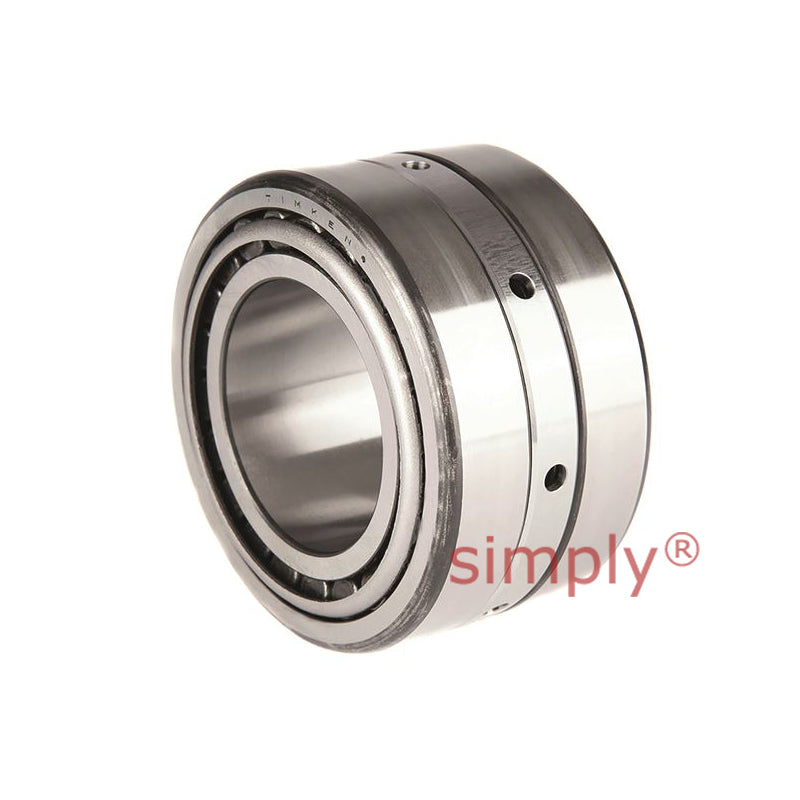

Timken H242649D/H242610/H242610EA TDI Double Inner Race Taper Roller Bearing 8.125x13.25x7.125x7.25 inch
Timken H242649D/H242610/H242610EA TDI Double Inner Race Taper Roller Bearing 8.125x13.25x7.125x7.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 206.38mm = 8.125 (8-1/8) inch
- Outside Diameter:
- 336.55mm = 13.25 (13-1/4) inch
- Width:
- 180.98mm = 7.125 (7-1/8) inch
Technical
Technical
| d | 206.375mm = 8.125 inch |
|---|---|
| D | 336.55mm = 13.25 inch |
| T | 180.975mm = 7.125 inch |
| C | 184.15mm = 7.25 inch |
| Dynamic (1) C1 | 2180000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 325000N |
| Dynamic (2) Ca90 | 185000N |
| Dynamic (2) C90(2) | 566000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 227mm = 8.94 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 306mm = 12.05 inch |
| G1 | 1400 |
| G2 | 135 |
| Cg | 0.1465 |
