SKU: GY1207-KRR-B-AS2/V-INA

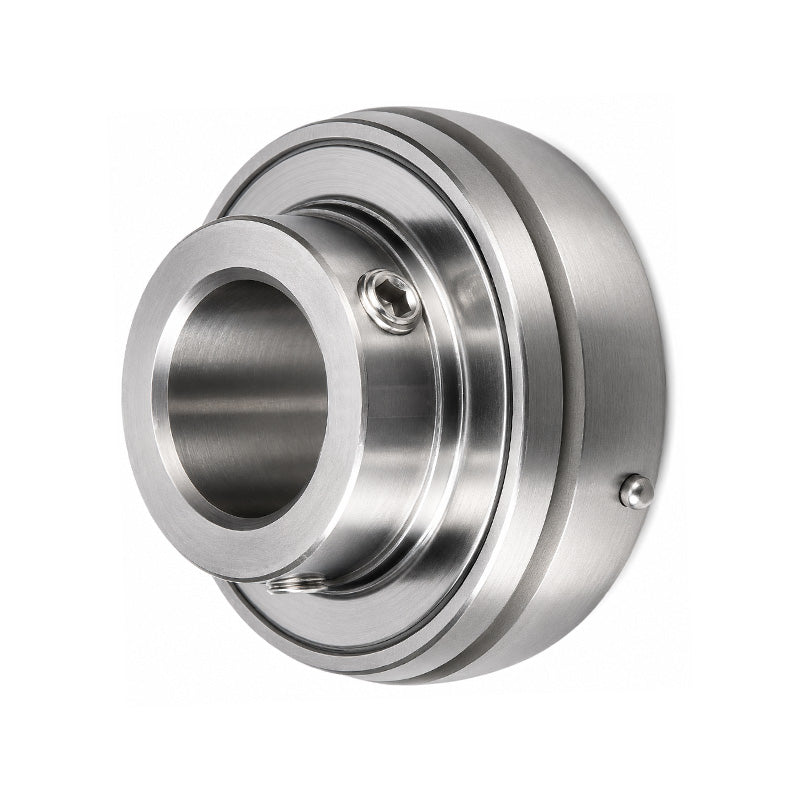

INA GY1207KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 61.91x110x65.1mm
INA GY1207KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 61.91x110x65.1mm
Out of stock
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm
- Width:
- 65.1mm
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| d | 61.91mm |
| Dsp | 4.3307 inch |
| Dsp | 110mm |
| B | 2.5630 inch |
| B | 65.1mm |
| A | 0.398 inch |
| C | 0.945 inch |
| C2 | 1.142 inch |
| Ca | 0.283 inch |
| D1 | 3.72 inch |
| d1 | 3.012 inch |
| S | 1 inch |
| W | 3/16 inch |
| Dynamic load Cr | 11700 lbf |
| Dynamic load Cr | 52000 N |
| Static load C0r | 8100 lbf |
| Static load C0r | 36000 N |
| Weight | 2.9 lbs |
