SKU: GILXS06-FLURO

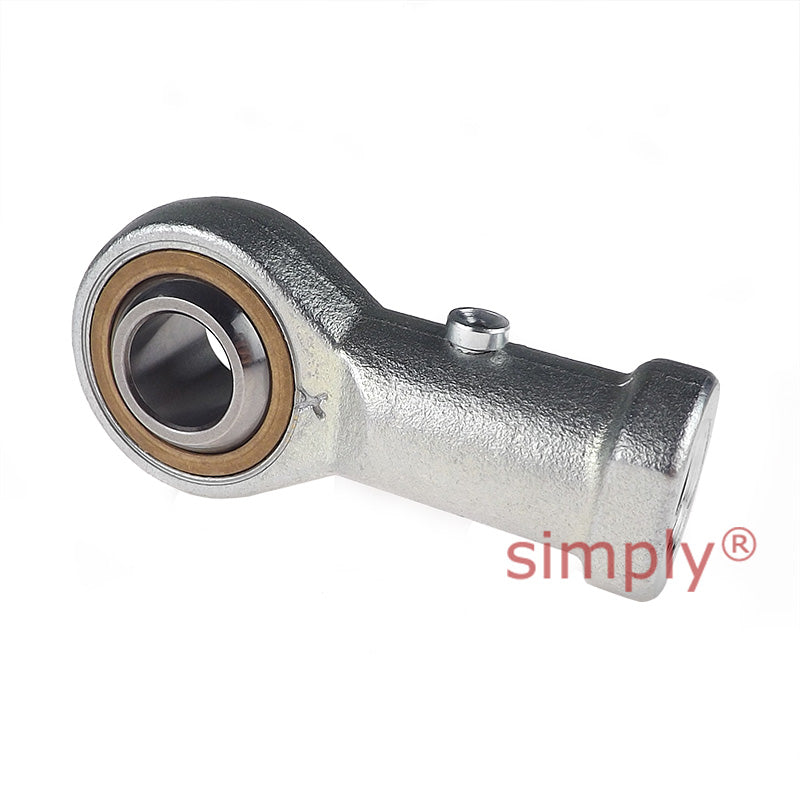

Fluro GILXS06 Left Hand Steel / Bronze Female Plain Rod End M6 Thread
Fluro GILXS06 Left Hand Steel / Bronze Female Plain Rod End M6 Thread
Out of stock
Share this product
Description
Description
Fluro GIXS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from heat-treated steel, zinc plated and regreasable through a grease nipple in housing. Especially suitable for high pressure and tension loads.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 6mm
- Inside Diameter:
- 6mm
- Material:
- Steel / Bronze

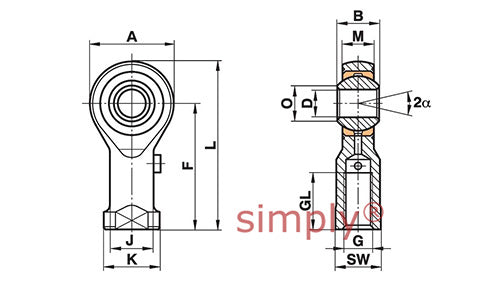

Technical
Technical
| Bore Size D | 6mm |
|---|---|
| B | 9mm |
| M | 6.75mm |
| A | 20mm |
| F | 30mm |
| L | 40mm |
| K | 13mm |
| J | 10mm |
| O | 8.9mm |
| SW | 11mm |
| Thread Size G | M6 |
| GL | 12mm |
| Static Load Co | 16.7kN |
| Dynamic Load | 4.3kN |
| Limiting Speed | 1500rev/min |
| Approx weight | 0.027kg |
