SKU: GILRSW30-FLURO

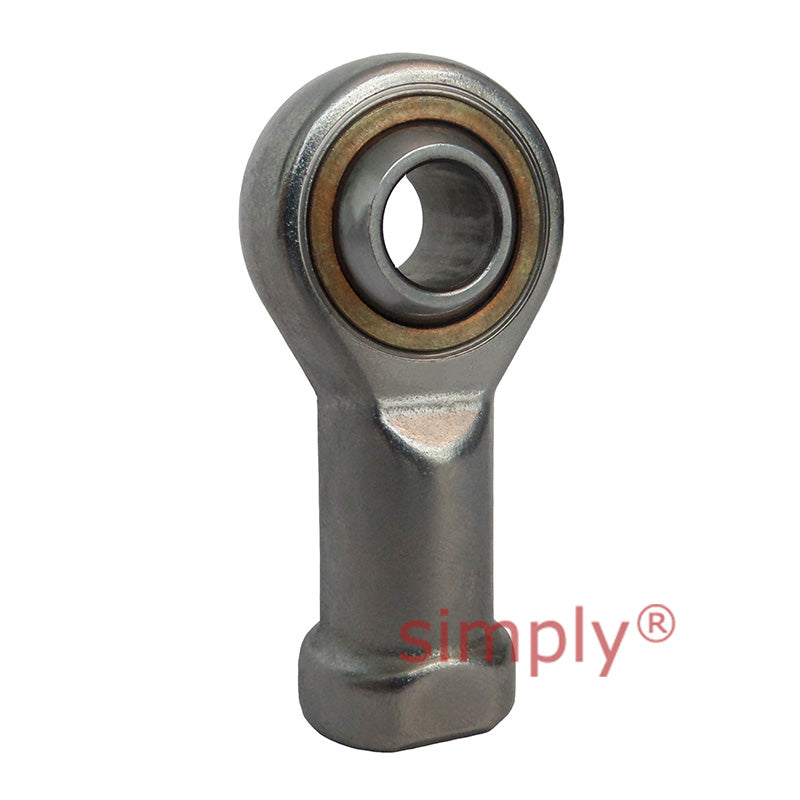

Fluro GILRSW30 Left Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M30x2 Thread
Fluro GILRSW30 Left Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M30x2 Thread
Out of stock
Share this product
Description
Description
Fluro GIRSW Series Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 30x2mm
- Inside Diameter:
- 30mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 30mm |
|---|---|
| B | 37mm |
| M | 25mm |
| A | 70mm |
| F | 110mm |
| L | 145mm |
| K | 50mm |
| J | 40mm |
| O | 34.8mm |
| SW | 41mm |
| Thread Size G | M30x2 |
| GL | 51mm |
| Static Load Co | 155kN |
| Dynamic Load | 168kN |
| Limiting Speed | 130rev/min |
| Approx weight | 1.13kg |
