SKU: GE60-KRR-B-FA101-INA

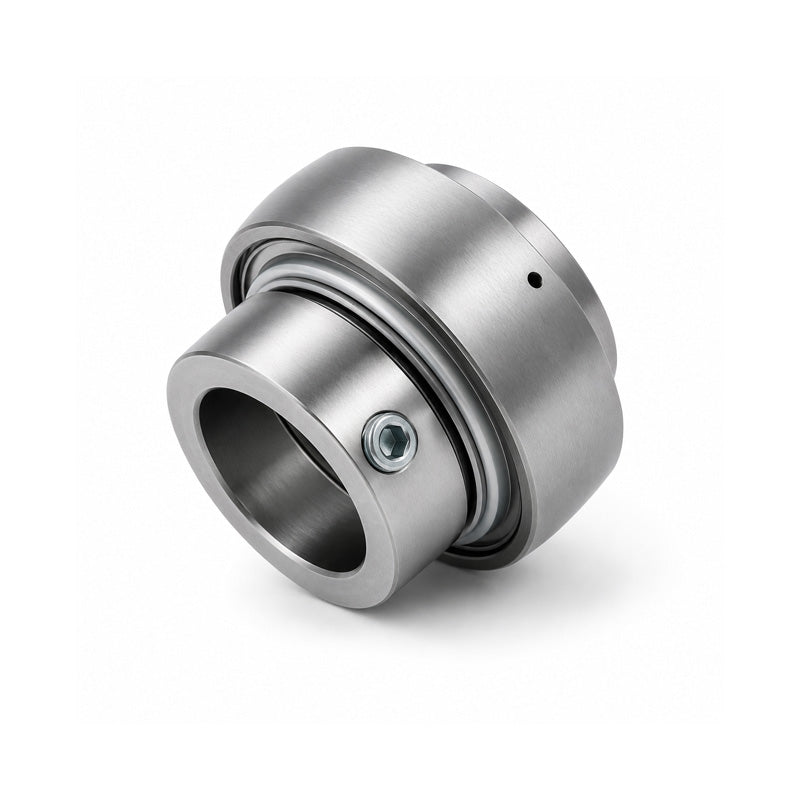

INA GE60KRRBFA101 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures from -40deg C to 180deg C 60x110x77.9mm
INA GE60KRRBFA101 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures from -40deg C to 180deg C 60x110x77.9mm
Out of stock
Description
Description
|
INA GE..KRR-B-FA101 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide operating temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 77.9mm
Technical
Technical
| d | 60mm |
|---|---|
| Dsp | 110mm |
| B1 | 77.9mm |
| B | 61.9mm |
| C | 24mm |
| C2 | 29mm |
| Ca | 7.2mm |
| D1 | 94.5mm |
| d1 | 76.5mm |
| d3 max | 84mm |
| S | 31mm |
| W | 5mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.8 kg |
