SKU: GE30-KRR-B-FA101-INA

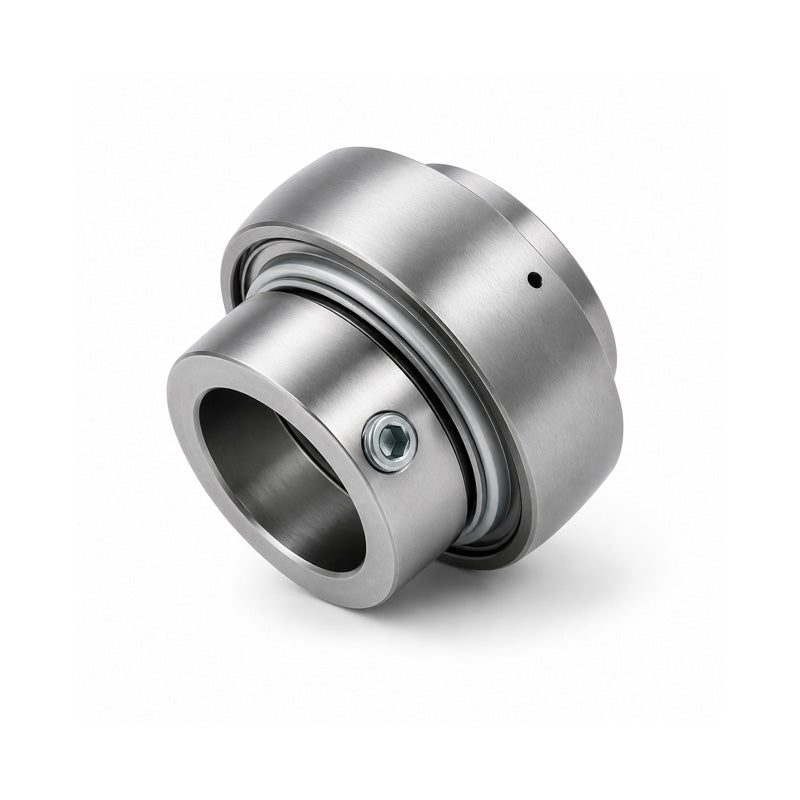

INA GE30KRRBFA101 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures from -40deg C to 180deg C 30x62x48.5mm
INA GE30KRRBFA101 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures from -40deg C to 180deg C 30x62x48.5mm
Out of stock
Description
Description
|
INA GE..KRR-B-FA101 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide operating temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 48.5mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B1 | 48.5mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 20.7mm |
| Ca | 4.7mm |
| D1 | 52mm |
| d1 | 40.2mm |
| d3 max | 44mm |
| S | 18.3mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.38 kg |
