SKU: GE14PW.INA

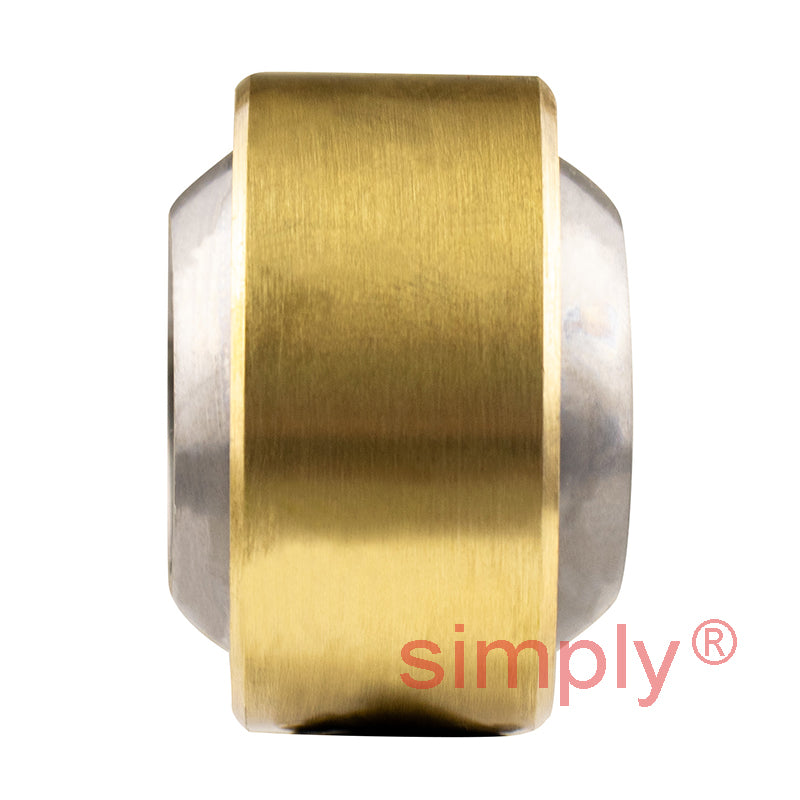

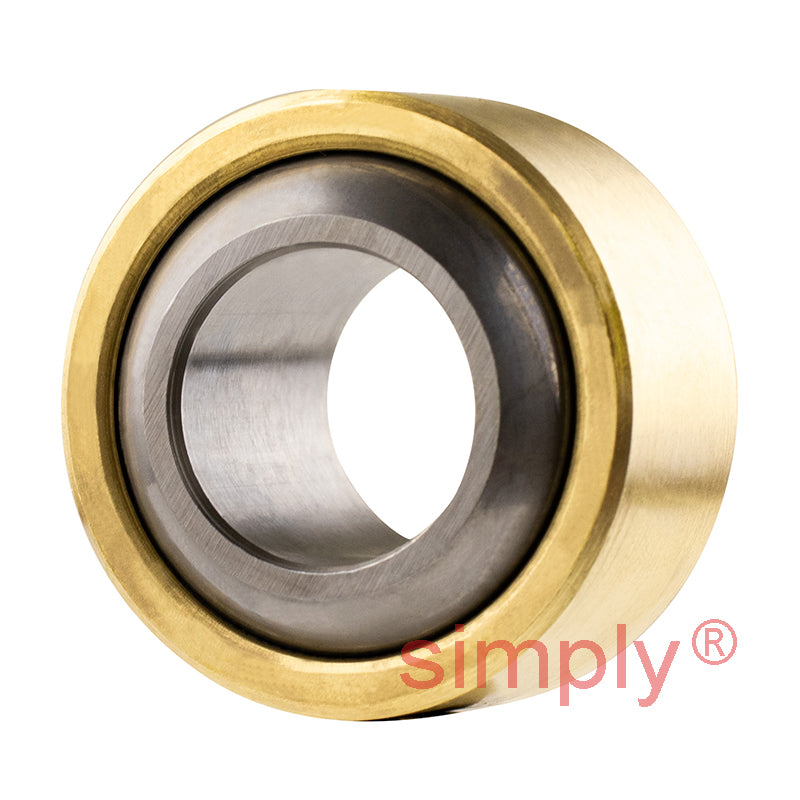

INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm
INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
Equivalent to: GE14-PW
In stock
Price Break
10+
€34,33
19+
€32,40
29+
€32,01
39+
€31,63
49+
€31,24
74+
€30,86
99+
€28,93
199+
€28,54
249+
€28,16
499+
€27,77
999+
€27,00
Quantity
Couldn't load pickup availability
Description
Description
INA GE..-PW Series Spherical Plain Bearings: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of steel against PTFE these spherical plain bearings are unsealed and are maintenance-free.
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 28mm
- Width:
- 19mm
Technical
Technical

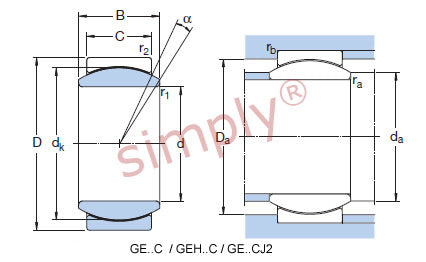

| d | 14mm (Bore tolerance: H7 (arithmetic mean value)) |
|---|---|
| D | 28mm (Tolerance: 0/-0.009) |
| B | 19mm (Tolerance: 0/-0.12) |
| Radial internal clearance | 0.006-0.035mm |
| C | 13.5mm (Tolerance: 0/-0.24) |
| Da min | 22.5mm |
| da max | 16.8mm |
| dk | 25.4mm |
| Chamfer dimension r1s min | 0.3mm |
| Chamfer dimension r2s min | 0.3mm |
| a | 16° |
| Mass | 0.054 kg |
| Basic dynamic load, radial Cr | 31000 N |
| Basic static load, radial Cor | 77500 N |
