SKU: GE110ES.EU
GE110ES Spherical Plain Bearing 110x160x70x55mm
GE110ES Spherical Plain Bearing 110x160x70x55mm
Regular price
€168,95
ex VAT
Regular price
Sale price
€168,95
ex VAT
In stock
Price Break
10+
€127,84
19+
€120,66
29+
€119,22
39+
€117,79
49+
€116,35
74+
€114,91
99+
€107,73
199+
€106,30
249+
€104,86
499+
€103,42
999+
€100,55
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 160mm
- Width:
- 70mm

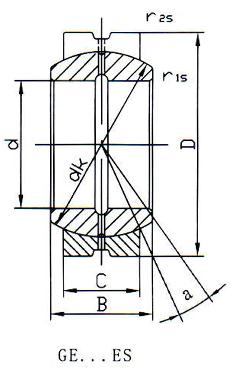

Technical
Technical
| d | 110mm |
|---|---|
| D | 160mm |
| B | 70mm |
| C | 55mm |
| dk | 140mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 6° |
| Dynamic load Co | 654 kN |
| Static load Cor | 3270 kN |
| Weight | 4.82 kg |
