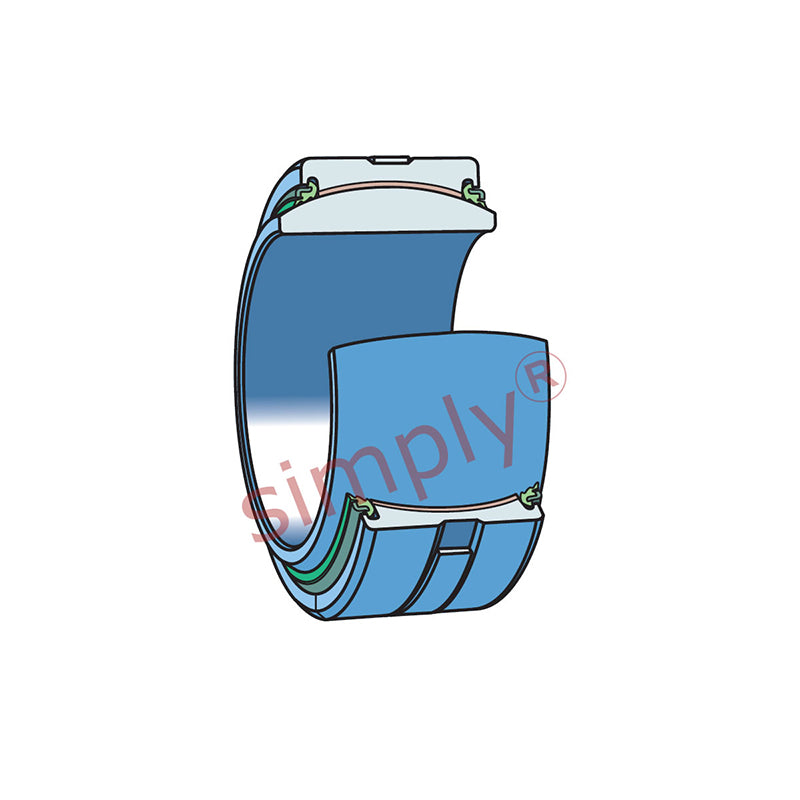

SKF GE100TXA2LS Maintenance Free Spherical Plain Bearing Steel / PTFE Fabric 100x150x70x55mm

Name: SKF GE100TXA2LS Maintenance Free Spherical Plain Bearing Steel / PTFE Fabric 100x150x70x55mm
Brand: SKF
SKU: GE100TXA-2LS-SKF
Price: 631.95 EUR
Availability: InStock

€631,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €480,65

19+ €453,64

29+ €448,24

39+ €442,84

49+ €437,44

74+ €432,04

99+ €405,04

199+ €399,64

249+ €394,24

499+ €388,84

999+ €378,04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF GE..TXA..2LS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of hardened and ground chrome plated steel against PTFE impregnated fabric these spherical plain bearings are fitted with heavy duty triple seals and require no maintenance.
Application: Suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally split outer ring in this case axially spit and held together by a single retaining spring clip around an annular groove in the outer raceway or in some instances bolted together. This greatly improves ease of assembly in many instances however care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joints are positioned at 90 degrees to the direction of load.
Benefits: Maintenance free operation.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 150mm
Width:: 70mm

Technical

d	100mm
D	150mm
B	70mm
C	55mm
Max misalignment angle	6 degrees
Dynamic load	1730 kN
Static load	2850 kN
dk	130mm
r1 min	1mm
r2 min	1mm
da min	108mm
da max	109.5mm
Da max	144mm
Da min	131mm
ra max	1mm
rb max	1mm
Weight	4.4 kg
