SKU: GARSW20-FLURO

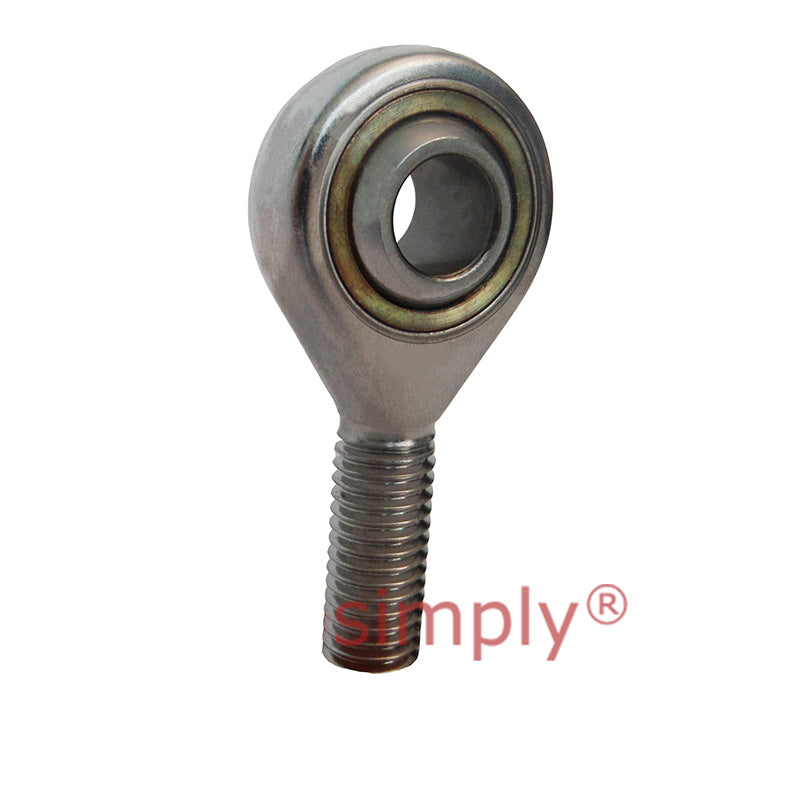

Fluro GARSW20 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M20x1.5 Thread
Fluro GARSW20 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M20x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GARSW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 20x1.5mm
- Inside Diameter:
- 20mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 20mm |
|---|---|
| B | 25mm |
| M | 18mm |
| A | 50mm |
| F | 78mm |
| L | 103mm |
| O | 24.3mm |
| Thread Size G | M20x1.5 |
| GL | 47mm |
| Static Load Co | 83kN |
| Dynamic Load | 78kN |
| Limiting Speed | 190rev/min |
| Approx weight | 0.348kg |
