SKU: GARS30-FLURO

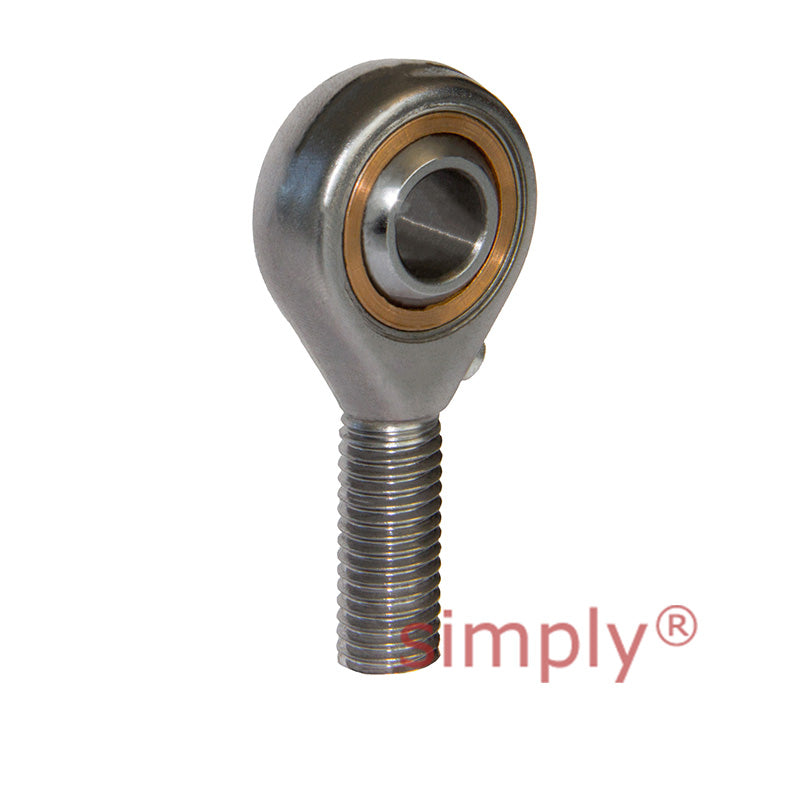

Fluro GARS30 Right Hand Stainless Steel / Bronze Male Plain Rod End M30x2 Thread
Fluro GARS30 Right Hand Stainless Steel / Bronze Male Plain Rod End M30x2 Thread
Out of stock
Share this product
Description
Description
Fluro GARS Series Stainless Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 30x2mm
- Inside Diameter:
- 30mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 30mm |
|---|---|
| B | 37mm |
| M | 25mm |
| A | 70mm |
| F | 110mm |
| L | 145mm |
| O | 34.8mm |
| Thread Size G | M30x2 |
| GL | 71mm |
| Static Load Co | 155kN |
| Dynamic Load | 64kN |
| Limiting Speed | 370rev/min |
| Approx weight | 1.03kg |
