SKU: GALSW06-FLURO

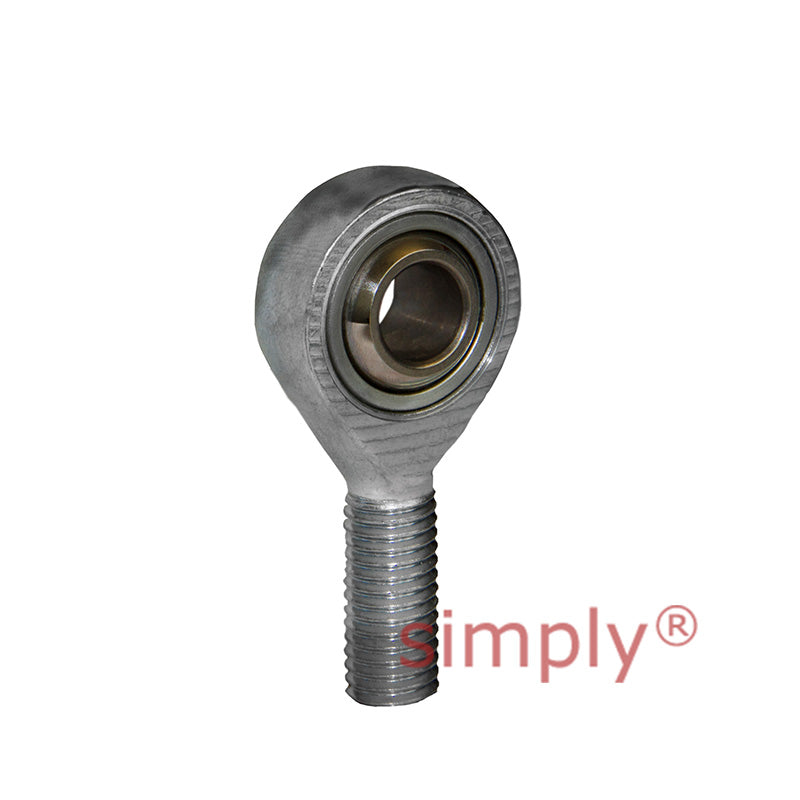

Fluro GALSW06 Left Hand Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod End M6 Thread
Fluro GALSW06 Left Hand Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod End M6 Thread
Out of stock
Share this product
Description
Description
Fluro GASW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with PTFE liner, maintenance free. For use at dynamic loads
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M6
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 6mm
- Inside Diameter:
- 6mm
- Material:
- Steel / PTFE Lined
Technical
Technical
| Bore Size D | 6mm |
|---|---|
| B | 9mm |
| M | 6.75mm |
| A | 20mm |
| F | 36mm |
| L | 46mm |
| O | 8.9mm |
| Thread Size G | M6 |
| GL | 21mm |
| Static Load Co | 6kN |
| Dynamic Load | 9.3kN |
| Limiting Speed | 530rev/min |
| Approx weight | 0.02kg |
