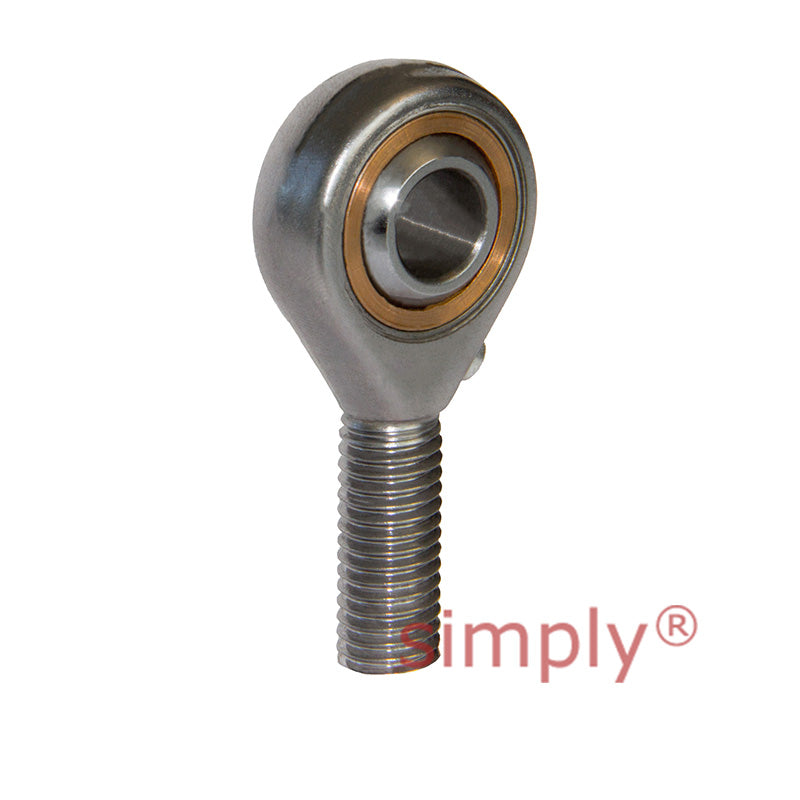

Fluro GALRS18 Left Hand Stainless Steel / Bronze Male Plain Rod End M18x1.5 Thread
Fluro GALRS18 Left Hand Stainless Steel / Bronze Male Plain Rod End M18x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GARS Series Stainless Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 18x1.5mm
- Inside Diameter:
- 18mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 18mm |
|---|---|
| B | 23mm |
| M | 16.5mm |
| A | 46mm |
| F | 72mm |
| L | 95mm |
| O | 21.8mm |
| Thread Size G | M18x1.5 |
| GL | 44mm |
| Static Load Co | 73kN |
| Dynamic Load | 26kN |
| Limiting Speed | 600rev/min |
| Approx weight | 0.267kg |
