SKU: FYTJ50KF-SKF

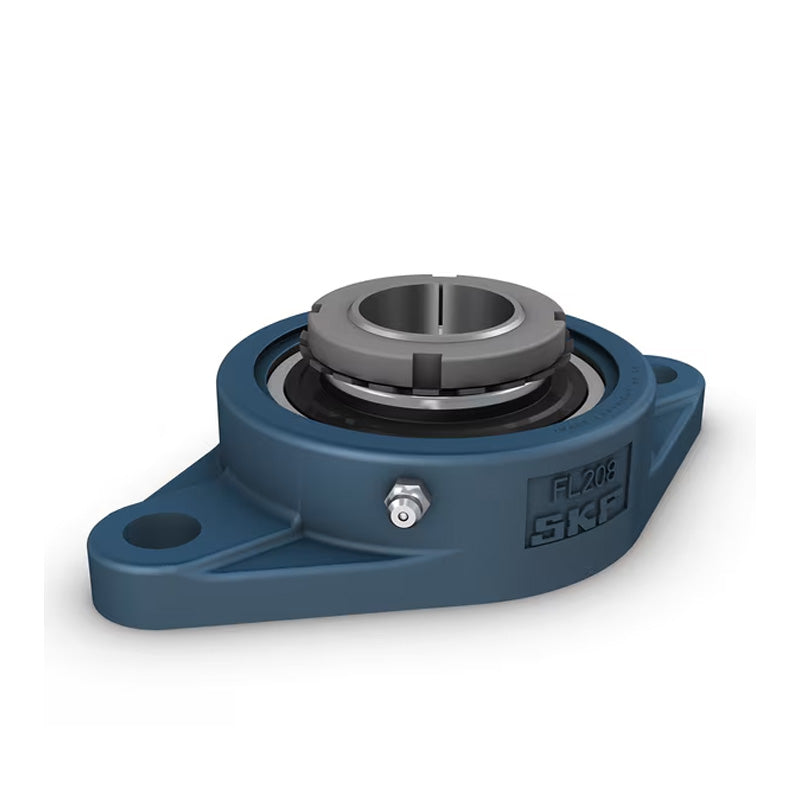

SKF FYTJ50KF Flanged Unit with an Oval Cast Housing with 45mm Insert
SKF FYTJ50KF Flanged Unit with an Oval Cast Housing with 45mm Insert
Regular price
€124,95
ex VAT
Regular price
Sale price
€124,95
ex VAT
In stock
Price Break
10+
€94,55
20+
€89,24
30+
€88,18
40+
€87,11
50+
€86,05
75+
€84,99
100+
€79,68
200+
€78,61
250+
€77,55
500+
€76,49
1000+
€74,36
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 40mm |
| A2 | 18mm |
| B1 | 55mm |
| Da | 101.6mm |
| H | 195mm |
| J | 157mm |
| L | 115mm |
| N | 19mm |
| G | 16mm |
| s1 | 30.5mm |
| T | 52.5mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.55 kg |
