SKF FYTJ45TF Oval Cast Housing with Grub Screw 45mm Insert
SKF FYTJ45TF Oval Cast Housing with Grub Screw 45mm Insert
Regular price
€95,95
ex VAT
Regular price
Sale price
€95,95
ex VAT
In stock
Price Break
10+
€72,49
20+
€68,42
30+
€67,60
40+
€66,79
50+
€65,97
75+
€65,16
100+
€61,09
200+
€60,27
250+
€59,46
500+
€58,64
1000+
€57,02
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 148mm

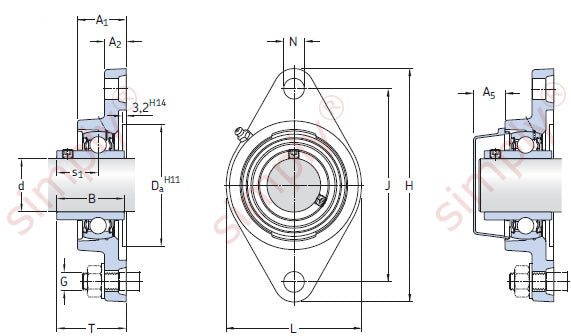

Technical
Technical
| d | 45mm |
|---|---|
| A1 | 38mm |
| A2 | 18mm |
| B | 49.2mm |
| Da | 98.4mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| G | 16mm |
| s1 | 30.2mm |
| T | 52.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.916 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.2 kg |
