SKU: FYKC40NTH-SKF

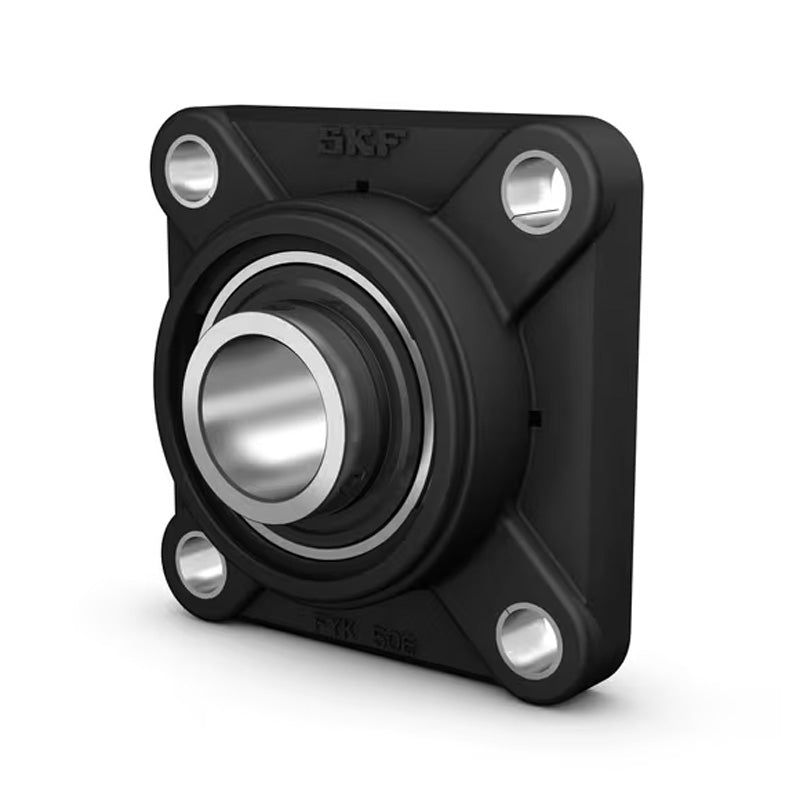

SKF FYKC40NTH Square Housing with Food-Grade Grease Grub Screw 40mm Insert
SKF FYKC40NTH Square Housing with Food-Grade Grease Grub Screw 40mm Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYKC
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 39mm |
| A2 | 17mm |
| B | 49.2mm |
| Da | 115.9mm |
| J | 101.5mm |
| L | 130mm |
| N | 14.5mm |
| G | 13mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 34.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 23.5mm |
| Weight | 0.87 kg |
| Compatible end cover closed | ECY208 |
